(1.32.7) - REAR MECHANICAL DIFFERENTIAL LOCK FOR 2WD - CONTROL LEVERS AND ROD (VAR.330387 / 743511)

Запчасти Case IH FARMALL 95N (1.32.7) - REAR MECHANICAL DIFFERENTIAL LOCK FOR 2WD - CONTROL LEVERS AND ROD (VAR.330387 / 743511) (03) - TRANSMISSION

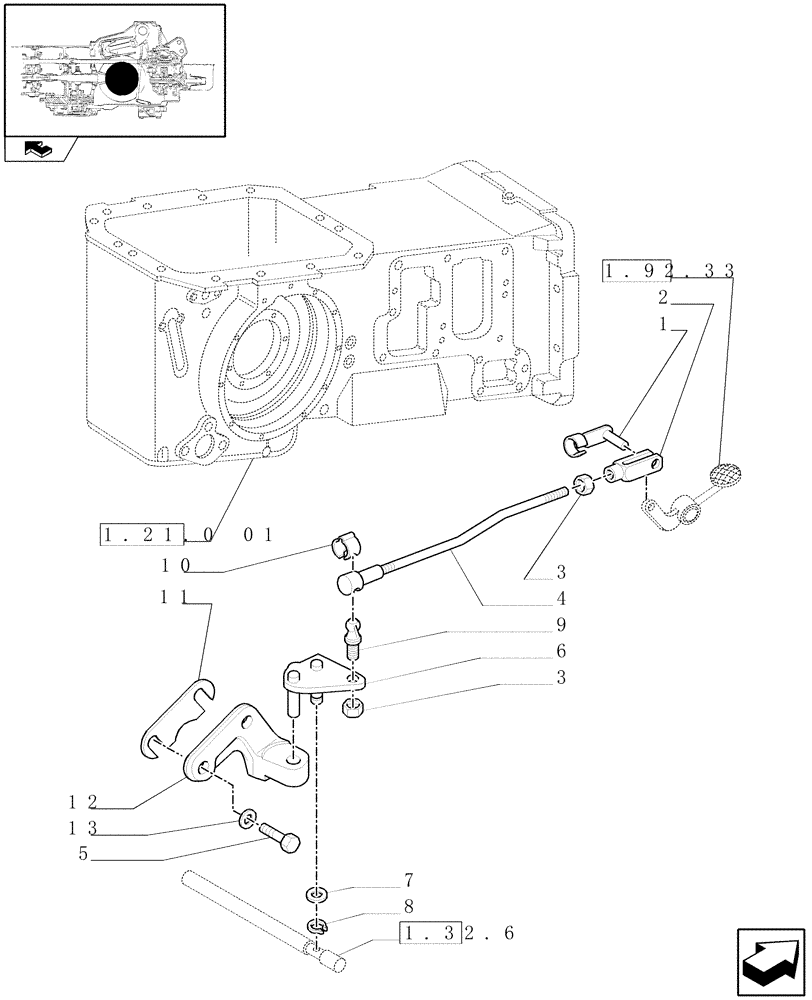

Схема запчастей Case IH FARMALL 95N - (1.32.7) - REAR MECHANICAL DIFFERENTIAL LOCK FOR 2WD - CONTROL LEVERS AND ROD (VAR.330387 / 743511) (03) - TRANSMISSION
10
3
6
4
1.21.0 01
home
1.32.6
9
1.92.33
2
8
7
5
11
3
13
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5111594

PIN,10mm OD x 65mm L

1шт.

2

5148659

CLEVIS

10 x 40

1шт.

3

10791024

THIN NUT,Thin, M10 x 1.25, Cl 05

2шт.

4

5188749

TIE-ROD

1шт.

5

10923224

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

5128297

LEVER

1шт.

7

13550704

WASHER,16.4mm ID x 30mm OD x 3mm Thk

16 x 30

1шт.

8

300625

SNAP RING,M16, Ext

1шт.

9

15152211

BALL JOINT

1шт.

10

10125674

CLAMP,15mm

1шт.

11

5114582

SHIM,25mm OD x 0.5mm Thk

MM.0.5

1шт.

12

5128296

SUPPORT

1шт.

13

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.
