(1.29.0) - GEARBOX INNER CONTROLS, RODS AND FORKS

Запчасти Case IH FARMALL 95N (1.29.0) - GEARBOX INNER CONTROLS, RODS AND FORKS (03) - TRANSMISSION

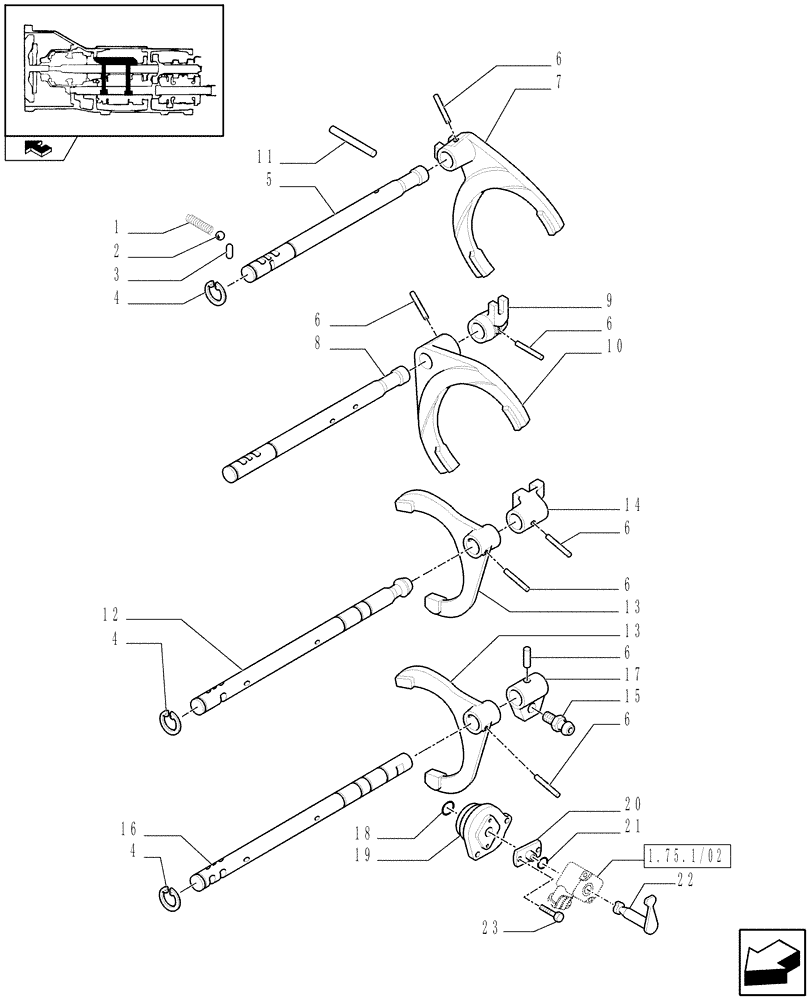

Схема запчастей Case IH FARMALL 95N - (1.29.0) - GEARBOX INNER CONTROLS, RODS AND FORKS (03) - TRANSMISSION
22
20
9
13
6
15
13
6
11
5
6
21
6
3
1.75.1/02
8
12
4
17
23
6
6
1
7
home
2
4
18
6
4
14
10
16
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5168268

SPRING,Compression, 8mm OD x 42mm L

3шт.

2

20063390

BALL,8.73mm OD

D=11/32

3шт.

3

5149882

PAWL,8.5mm D x 23mm L

1шт.

4

300625

SNAP RING,M16, Ext

3шт.

5

5177302

ROD,15.5mm OD x 299mm L

1ST/2nd Gear

1шт.

6

13910370

ROLL PIN,6mm OD x 30mm L

5шт.

7

5171985

SHIFTER FORK,96mm OD x 8mm Thk

1ST/2nd Gear

1шт.

8

5177303

ROD,15.5mm OD x 299mm L

3RD/4th Gear

1шт.

9

5172005

DOG

3RD/4th Gear

1шт.

10

5171991

SHIFTER FORK,96mm OD x 8mm Thk

3RD/4th Gear

1шт.

11

10337110

DOWEL,M6 x 45

1шт.

12

47130818

ROD,15.5mm OD x 391mm L

Inverter

1шт.

13

47125919

YOKE,16mm Hole Dia

Inverter

1шт.

32X16 HI-LO and Power Shuttle with Hydraulic Transmission, VAR.330273-330275-331275

1шт.

14

5178133

DOG

Inverter

1шт.

14

5178071

DOG

Inverter

1шт.

16X16 With Interlock - NA, VAR.332271

1шт.

75N Model, 85N Model, 95N Model

1шт.

15

5168372

PROP

1шт.

32X16 HI-LO and Power Shuttle with Hydraulic Transmission, VAR.330273-330275-331275

1шт.

16

87523035

ROD,16mm OD x 358.5mm L

Inverter

1шт.

32X16 HI-LO and Power Shuttle with Hydraulic Transmission, VAR.330273-330275-331275

1шт.

17

5168371

DOG

Inverter

1шт.

32X16 HI-LO and Power Shuttle with Hydraulic Transmission, VAR.330273-330275-331275

1шт.

18

14454780

O-RING,1.614" ID x 0.07" Width

1шт.

32X16 HI-LO and Power Shuttle with Hydraulic Transmission, VAR.330273-330275-331275

1шт.

19

87523038

PLATE

1шт.

32X16 HI-LO and Power Shuttle with Hydraulic Transmission, VAR.330273-330275-331275

1шт.

20

5178541

PLATE

1шт.

32X16 HI-LO and Power Shuttle with Hydraulic Transmission, VAR.330273-330275-331275

1шт.

21

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

32X16 HI-LO and Power Shuttle with Hydraulic Transmission, VAR.330273-330275-331275

1шт.

22

87523036

SHAFT,11.9mm OD x 42.5mm L

1шт.

32X16 HI-LO and Power Shuttle with Hydraulic Transmission, VAR.330273-330275-331275

1шт.

23

13274224

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 8.8, Full Thd

2шт.

32X16 HI-LO and Power Shuttle with Hydraulic Transmission, VAR.330273-330275-331275

1шт.
