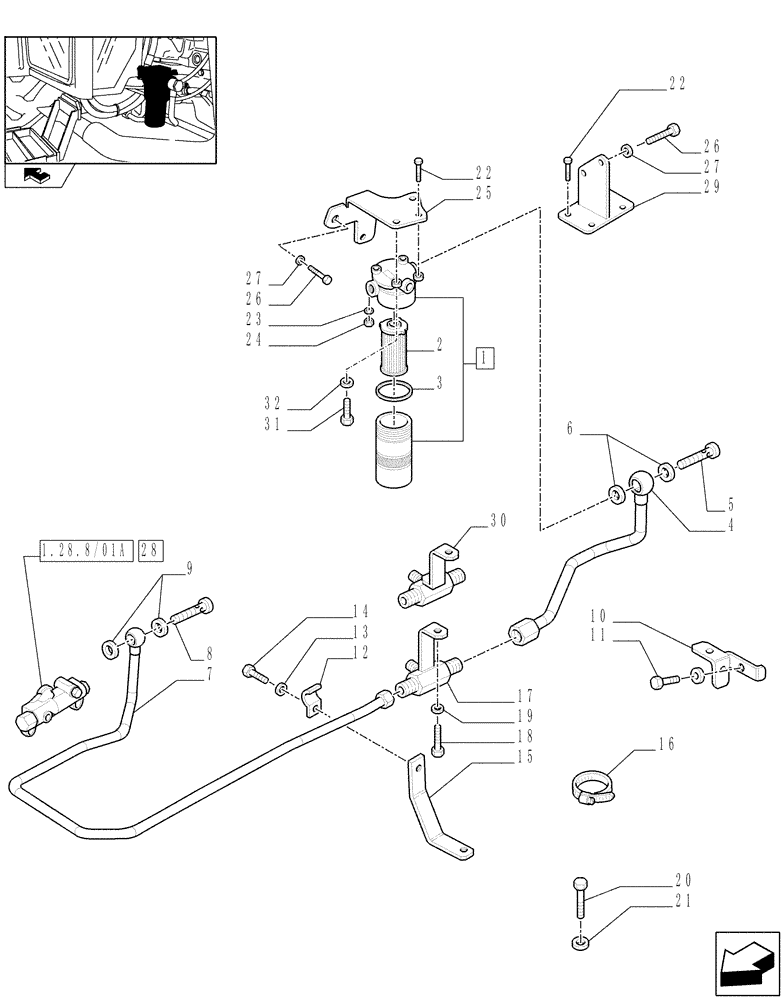

Запчасти Case IH FARMALL 95N (1.28.8/02[01]) - GEARBOX LUBRIFICATION PIPES AND OIL FILTER (03) - TRANSMISSION

1

5177856

FILTER,68.38mm OD x 102.5mm L, M22 x 1.5, 15 Microns

ASSY, Serial Range: -C6558

1шт.

1

47128209

FILTER ASSY

, Start Serial: D6558

1шт.

2

5194879

ELEMENT

1шт.

3

5178101

KIT

, Serial Range: -C6558

1шт.

3

5194880

O-RING KIT

, Start Serial: D6558

1шт.

4

87587336

RIGID TUBE,16 mm OD

, Serial Range: -C6437

1шт.

4

84188790

HYD TUBE,16 mm OD

, Start Serial: D6437

1шт.

5

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

6

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

5шт.

7

87587342

RIGID TUBE,16 mm OD

, Serial Range: -C6437

1шт.

7

87587256

RIGID TUBE,16 mm OD

, Serial Range: -C6437

1шт.

Rear Mechanical Differential Lock for Mechanical Transmission - 2WD, VAR.330387

1шт.

75N Model, 85N Model, 95N Model

1шт.

7

84188788

HYD TUBE,16 mm OD

, Start Serial: D6437

1шт.

7

84188785

HYD TUBE,16 mm OD

, Start Serial: D6437

1шт.

Rear Mechanical Differential Lock for Mechanical Transmission - 2WD, VAR.330387

1шт.

75N Model, 85N Model, 95N Model

1шт.

8

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

9

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

3шт.

10

5177828

BRACKET

1шт.

11

15970611

BOLT,Hex, M10 x 1.25 x 22mm, Cl 5.8, Full Thd

1шт.

11

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

2WD Standard Steering for Mechanical Transmission, VAR.335280-339280

1шт.

12

5193286

BRACKET

1шт.

13

10516474

LOCK WASHER

1шт.

14

10902014

BOLT,Hex, M6 x 12mm, Cl 5.8, Full Thd

1шт.

15

87499429

BRACKET

1шт.

16

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

50 x 70

1шт.

17

87587346

HYD CONNECTOR

, Serial Range: -C6437

1шт.

18

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

19

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

20

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

21

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

22

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

, Serial Range: -C6963

3шт.

23

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

, Serial Range: -C6963

3шт.

24

43362

NUT,M8 x 1.25, Cl 10

, Serial Range: -C6963

3шт.

25

87587292

SUPPORT

W/CAB, Serial Range: -C6963

1шт.

25

84417907

SUPPORT

, Start Serial: D6963

1шт.

26

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

2шт.

27

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

28

5186117

HYDRAULIC VALVE

ASSY

1шт.

2WD Traction Selection for Mechanical Transmission, VAR.335280-339280

1шт.

75N Model, 85N Model, 95N Model

1шт.

29

87587304

SUPPORT

L/CAB

1шт.

30

84188765

HYD CONNECTOR

, Start Serial: D6437

1шт.

31

16044324

SCREW,Hex, M8 x 1.25 x 55mm, Cl 8.8

, Start Serial: D6963

3шт.

32

12602474

WAVE WASHER,Wave, M8.3

, Start Serial: D6963

3шт.
