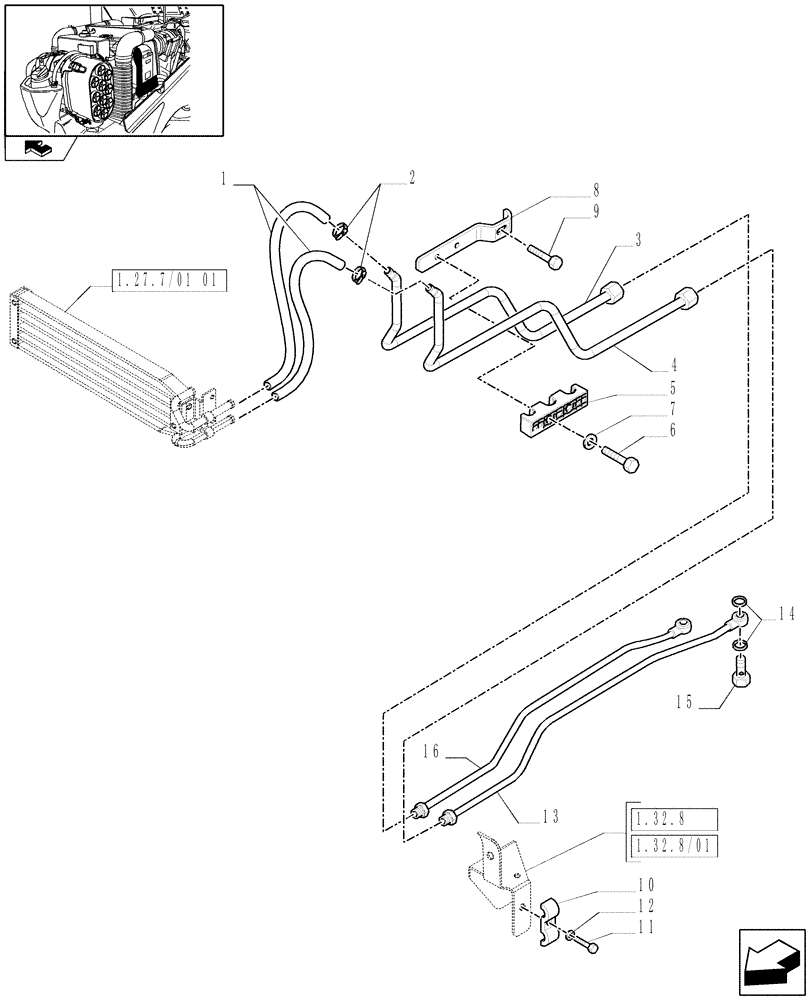

Запчасти Case IH FARMALL 95N (1.27.7/01[02]) - PUMP AND OIL COOLER - PIPES (VAR.335823-336823 / 743524; VAR.334823) (03) - TRANSMISSION

1

44018549

HYDRAULIC HOSE,13.00 mm ID x 780.00 mm

2шт.

2

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

2шт.

3

87631016

RIGID TUBE

1шт.

4

87631019

RIGID TUBE

1шт.

5

87570949

BRACKET

1шт.

6

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

8

87572241

RETAINER COLLAR

1шт.

9

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

10

5177880

CLAMP,14mm ID

1шт.

11

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

12

10516474

LOCK WASHER

1шт.

13

5177868

RIGID TUBE

1шт.

65l/Min Hydraulic Pump with Oil Cooler, VAR.335823-336823

1шт.

14

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

15

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

16

5177864

RIGID TUBE

1шт.

65l/Min Hydraulic Pump with Oil Cooler, VAR.335823-336823

1шт.
