(1.27.3/01[03]) - 2WD AND 4WD STANDARD TRACTION SELECTION WITH 32X16 HYDR. TRANSM. - CLUTCH ENGAGEM., PIPES (VAR.337402 / 743513; VAR.338401)

Запчасти Case IH FARMALL 95N (1.27.3/01[03]) - 2WD AND 4WD STANDARD TRACTION SELECTION WITH 32X16 HYDR. TRANSM. - CLUTCH ENGAGEM., PIPES (VAR.337402 / 743513; VAR.338401) (03) - TRANSMISSION

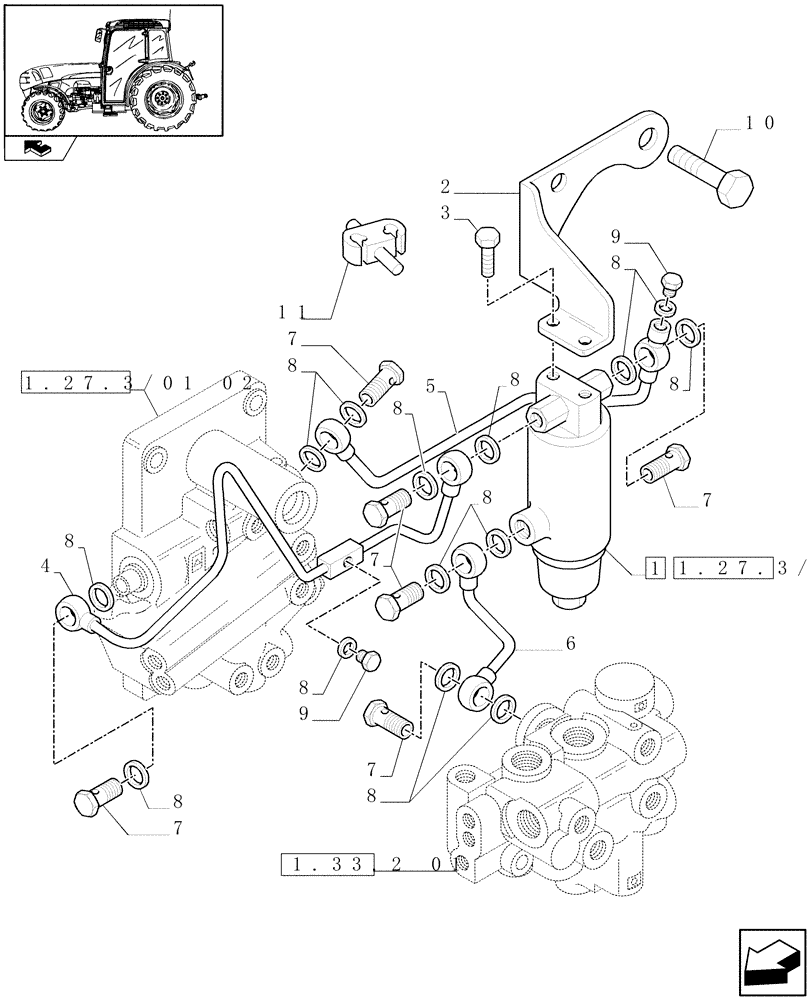

Схема запчастей Case IH FARMALL 95N - (1.27.3/01[03]) - 2WD AND 4WD STANDARD TRACTION SELECTION WITH 32X16 HYDR. TRANSM. - CLUTCH ENGAGEM., PIPES (VAR.337402 / 743513; VAR.338401) (03) - TRANSMISSION
9
3
7
7
8
5
7
4
10
8
2
7
8
8
8
6
8
8
8
9
1
7
8
8
11
1.33.2 01
home
1.27.3/01a
1.27.3/01 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87622906

ACCUMULATOR

1шт.

2

5187886

BRACKET

1шт.

3

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

4

5193220

RIGID TUBE

Forward

1шт.

5

5191298

RIGID TUBE

Backward

1шт.

6

5191273

RIGID TUBE

1шт.

7

5176180

BANJO BOLT,M10 x 1 x 17.5mm

Hex

5шт.

7

5181983

HYD CONNECTOR,M10 x 1 27mm L

Round

1шт.

8

10260960

SEALING WASHER,M10.2 x 14 x 1.5

14шт.

9

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.

10

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

2шт.

11

14581180

SPRING CLIP,2x6.3mm OD x 37mm L

1шт.
