Запчасти Case IH FARMALL 90N (37.110.060) - VAR - 744833 - REAR, HYDRAULIC LIFT, CONTROL LEVER, W/ LIFT-O-MATIC PLUS, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

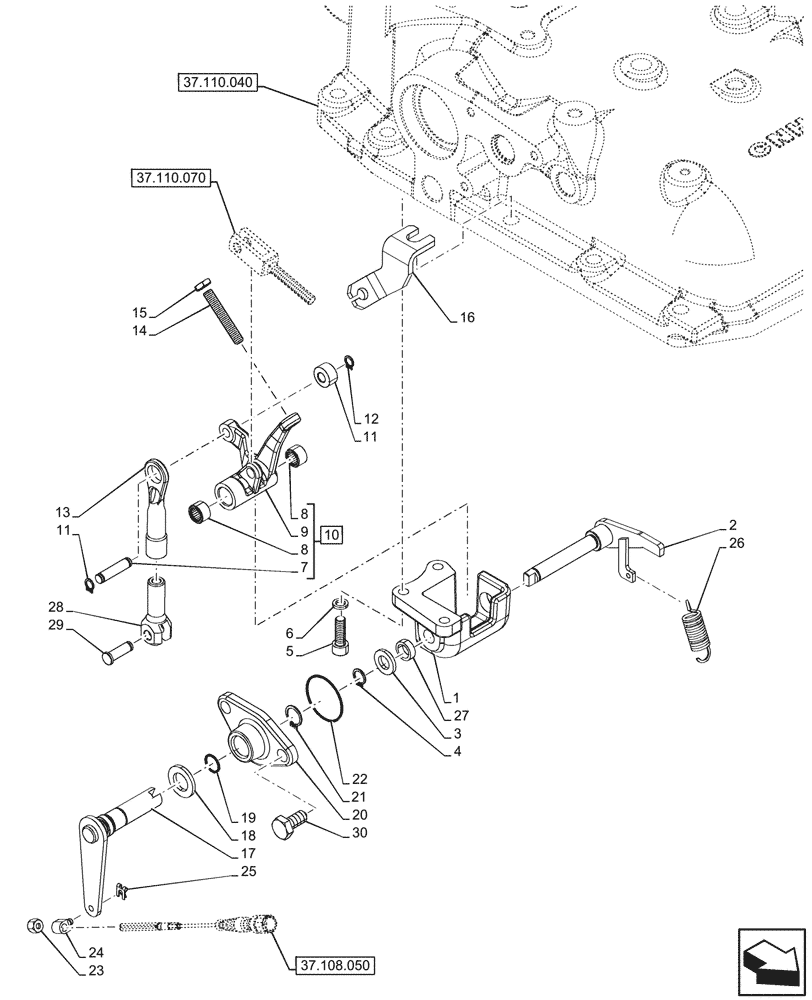

Схема запчастей Case IH FARMALL 90N - (37.110.060) - VAR - 744833 - REAR, HYDRAULIC LIFT, CONTROL LEVER, W/ LIFT-O-MATIC PLUS, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.108.050
27
17
5
23
28
12
8
30
24
25
16
1
11
11
29
8
4
21
22
18
14
3
2
13
15
20
10
19
26
9
6
7
37.110.040
37.110.070

Артикул

Название

Примечание

Количество

1

5173366

SUPPORT

1шт.

2

5177261

LEVER

1шт.

3

10520004

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

4

11066076

SNAP RING,M12, Ext

1шт.

5

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

6

10569370

LOCK WASHER,8.1mm ID x 12.7mm OD x 2mm Thk

3шт.

7

NSS

NOT SOLD SEPARAT

Pin, Incl in 10

1шт.

8

5117138

ROLLER BEARING,12 mm ID x 16 mm OD x 10 mm

2шт.

9

NSS

NOT SOLD SEPARAT

Lever, Incl in 10

1шт.

10

5175907

LEVER

ASSY, Incl 7 - 9

1шт.

11

11065676

SNAP RING,M8, Ext

2шт.

12

5111028

ROLLER,18mm OD x 10mm L

1шт.

13

5176628

BALL JOINT HEAD

1шт.

14

13791321

SET SCREW,Hex Skt, M8 x 50mm, Flat Pt

1шт.

15

16103614

THIN NUT,Thin, M12, 1.25 Pitch, Cl 04

1шт.

16

47490268

BRACKET

1шт.

17

47463035

LEVER

1шт.

18

10520321

WASHER,18.4mm ID x 32mm OD x 4mm Thk

1шт.

19

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

20

5176916

SUPPORT

1шт.

21

11066476

SNAP RING,M16, Ext

1шт.

22

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

23

12574215

NUT,M6 x 1, Cl 8

1шт.

24

5138330

PIN,5mm OD x 17.5mm L

1шт.

25

11063876

SPRING CLIP,M5 x 4mm

1шт.

26

5176629

SPRING,Extension, 16mm OD x 51mm L

1шт.

27

5173393

SPACER,12.5mm ID x 17mm OD x 5.5mm L

1шт.

28

5173352

CLEVIS,M8 x 1

1шт.

29

5117161

PIN,8mm OD x 27mm L

1шт.

30

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 30
