(37.108.060) - VAR - 342266, 342267, 759011 - ELECTRONIC DRAFT CONTROL, LINE, CAB

Запчасти Case IH FARMALL 90N (37.108.060) - VAR - 342266, 342267, 759011 - ELECTRONIC DRAFT CONTROL, LINE, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

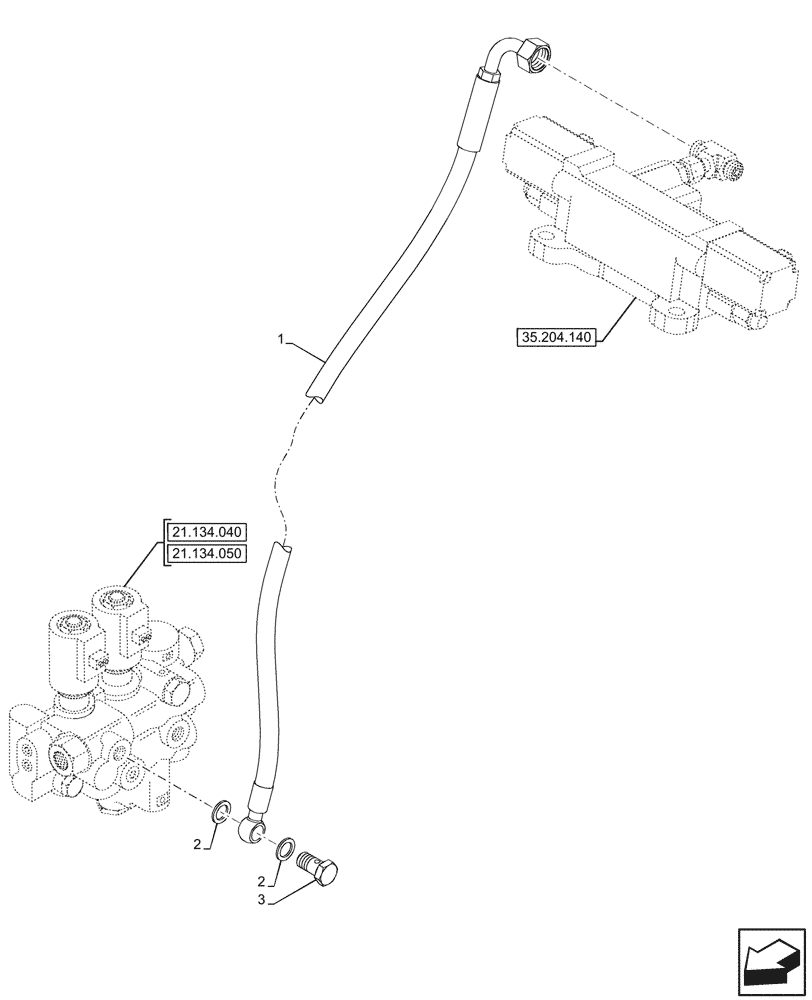

Схема запчастей Case IH FARMALL 90N - (37.108.060) - VAR - 342266, 342267, 759011 - ELECTRONIC DRAFT CONTROL, LINE, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
35.204.140
2
2
3
1
21.134.050
21.134.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47673477

HYDRAULIC HOSE,6.4mm ID x 1123mm L

1123mm, from Draft Valve to Differential Lock Valve

1шт.

2

10298460

SEALING WASHER,M12.2 x 18 x 1.5

2шт.

3

10185011

BANJO BOLT,M12 x 1.25 x 23mm

1шт.

Выбрано товаров: 3
