Запчасти Case IH FARMALL 90N (10.501.070) - VAR - 342256, 342257, 342258, 759021 - EXHAUST, MUFFLER, PROTECTION, MID-MOUNT CONTROL VALVE, CAB (10) - ENGINE

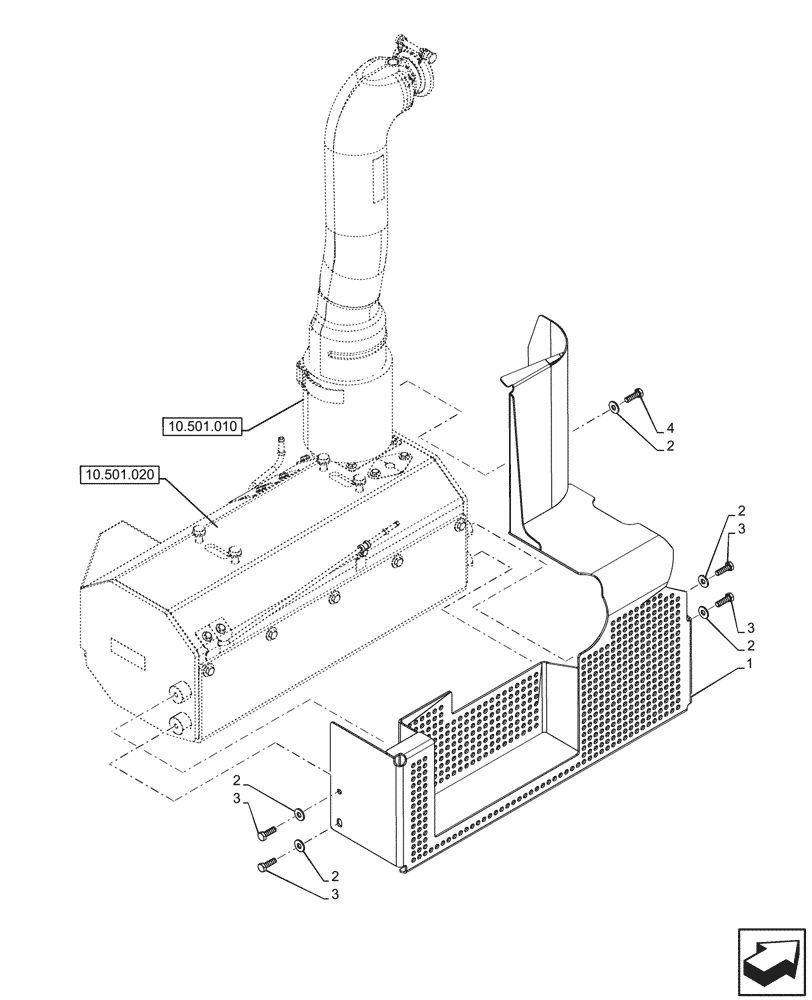

Схема запчастей Case IH FARMALL 90N - (10.501.070) - VAR - 342256, 342257, 342258, 759021 - EXHAUST, MUFFLER, PROTECTION, MID-MOUNT CONTROL VALVE, CAB (10) - ENGINE
10.501.020
2
3
2
2
3
1
4
3
2
2
3
10.501.010

Артикул

Название

Примечание

Количество

1

48008082

COVER

1шт.

2

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

5шт.

3

412247

BOLT,Hex, M8 x 25mm, Cl 8.8

4шт.

4

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 4
