Запчасти Case IH FARMALL 85N (1.15.1) - HORIZONTAL EXHAUST AND SILENCER (02) - ENGINE EQUIPMENT

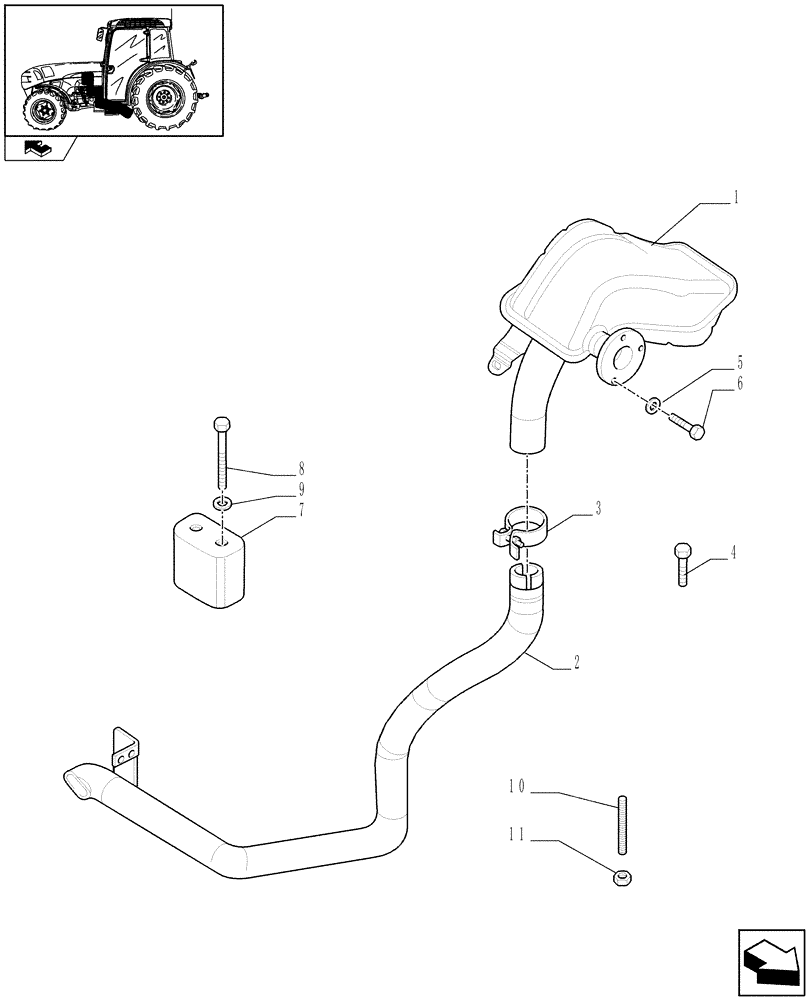

Схема запчастей Case IH FARMALL 85N - (1.15.1) - HORIZONTAL EXHAUST AND SILENCER (02) - ENGINE EQUIPMENT
5
4
3
10
7
9
6
2
11
home
8
1

Артикул

Название

Примечание

Количество

1

87379358

MUFFLER

1шт.

2

87474523

EXHAUST SYSTEM PIPE

1шт.

3

87667303

HOSE CLAMP,58mm - 58.5mm

1шт.

4

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

6

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

7

87579822

SPACER

1шт.

8

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

10

13516920

STUD,M8 x 12mm x 22mm, Cl 8.8

M8 x 12 x 22

1шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

Выбрано товаров: 11
