(0.14.0[02]) - INJECTION EQUIPMENT - INJECTOR

Запчасти Case IH FARMALL 85N (0.14.0[02]) - INJECTION EQUIPMENT - INJECTOR (01) - ENGINE

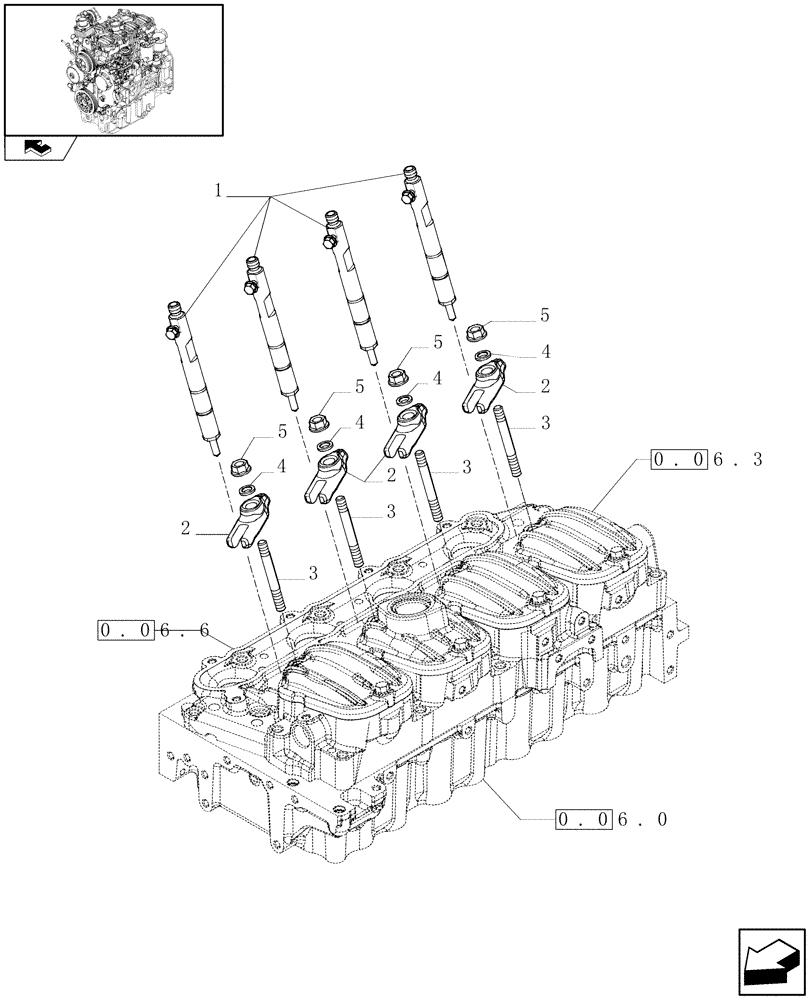

Схема запчастей Case IH FARMALL 85N - (0.14.0[02]) - INJECTION EQUIPMENT - INJECTOR (01) - ENGINE
4
3
5
3
4
2
5
0.06.6
3
1
2
5
0.06.0
4
0.06.3
5
2
4
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504275234

FUEL SYSTEM INJECTOR

4шт.

504275234R

REMAN-INJECT NOZZLE

FARMALL 75N Upgrade Special, FARMALL 85N Upgrade Special, N.A. only

1шт.

504275234C

CORE-NOZZLE, INJECT

Return Number, for N.A. only

1шт.

2

504174745

BRACKET

4шт.

3

504315404

STUD,M8 x 16 x 60mm

M8 x 16 x 60

4шт.

4

500353601

WASHER

4шт.

5

17044731

FLANGE NUT,Hex, M8 x 1.25, Cl 10

4шт.
