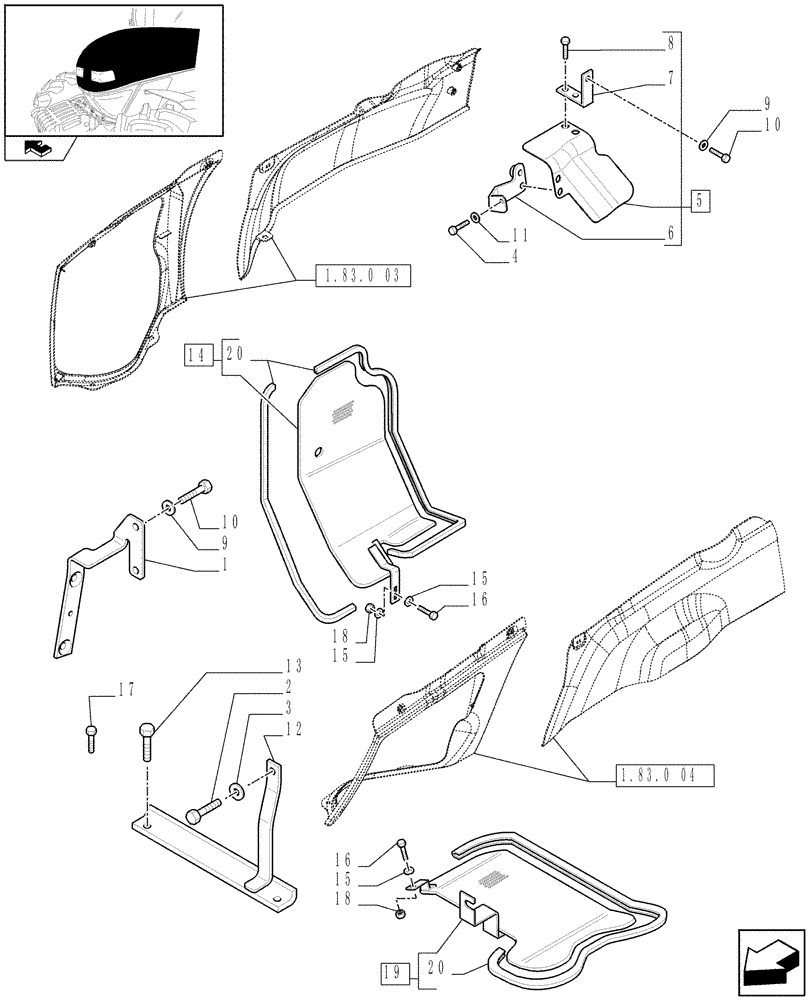

Запчасти Case IH FARMALL 85N (1.83.0[05]) - HOOD BRACKETS AND HEAT PROTECTIONS (08) - SHEET METAL

1

87633909

BRACKET

RH

1шт.

2

10902724

SCREW,Hex, M6 x 28mm, Cl 8.8, Full Thd

1шт.

3

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

4

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

1шт.

5

87737201

GUARD

ASSY, Incl 6-8

1шт.

6

84369338

PLATE

1шт.

7

87737208

GUARD

1шт.

8

14778714

SCREW,Cross Rec Cheese Hd, M6 x 10mm, Cl 5.8

4шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

10

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

11

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

12

87732134

BRACKET

1шт.

13

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

2шт.

14

84215194

GRILLE

ASSY, Incl 20

1шт.

15

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

3шт.

16

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

17

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

18

15896224

NUT,Hex, M6

2шт.

19

84127540

GRILLE

GUARD LH, ASSY, Incl 20

1шт.

20

82849298

GASKET,1529mm L

2000 mm

1шт.
