Запчасти Case IH FARMALL 85N (1.82.8) - HYDRAULIC LIFT, LIFT ARMS AND CONNECTING SHAFT (07) - HYDRAULIC SYSTEM

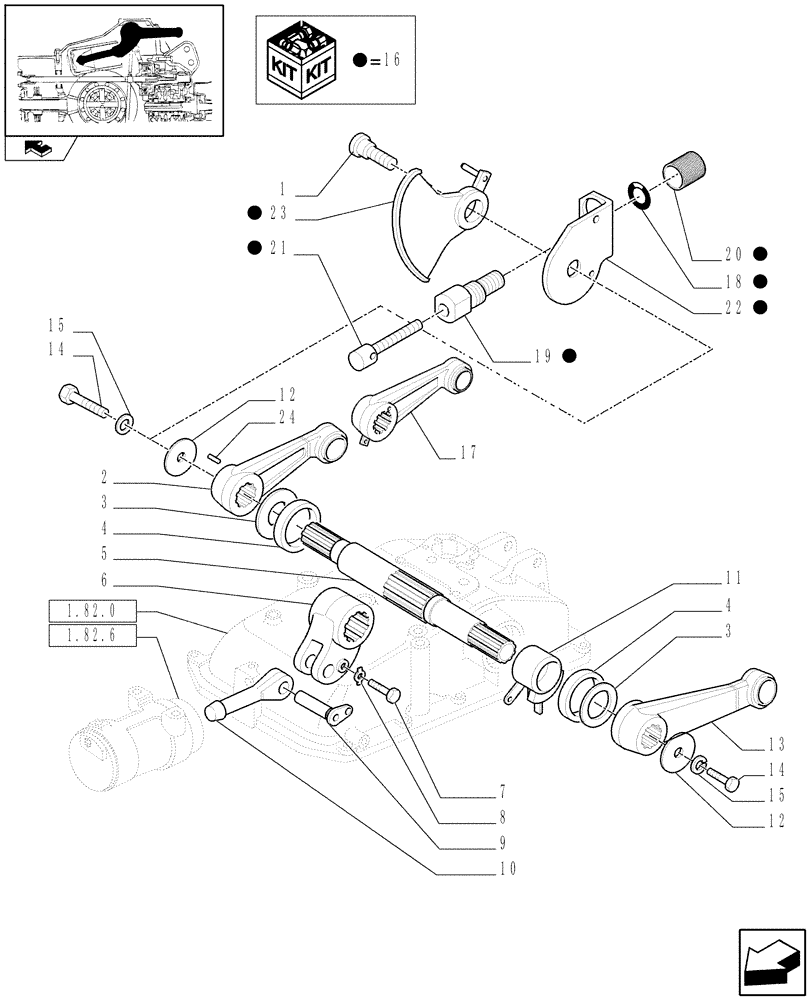

Схема запчастей Case IH FARMALL 85N - (1.82.8) - HYDRAULIC LIFT, LIFT ARMS AND CONNECTING SHAFT (07) - HYDRAULIC SYSTEM
7
19
5
22
9
16
16
10
12
1
16
16
12
21
14
home
3
8
1.82.0
16
3
4
15
23
18
20
11
2
13
17
16
24
1.82.6
14
4
6
15
16
16

Артикул

Название

Примечание

Количество

1

5194674

HEX SOC SCREW,Hex, M14 x 1.5 x 47mm

75N, 85N, 95N

1шт.

2

87753700

LIFT ARM

RH, ASSY

1шт.

3

5125649

SPACER,47mm ID x 85mm OD x 6mm L

2шт.

4

5125650

OIL SEAL,48mm ID x 65mm OD x 10mm Thk

48 x 65

2шт.

5

5176508

CONTROL SHAFT,50/43.5mm ID x 54.4/46.5mm OD x 428mm L, 42/60T

1шт.

6

5176633

ARM

1шт.

7

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

8

14198810

LOCKING PLATE,M10

D=10

1шт.

9

5176612

PIN,60mm L

1шт.

10

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

11

5176643

RING,48mm ID x 63mm OD x 49.5mm Thk

1шт.

11

5196478

RING

, Serial Range: -`0

1шт.

Electronic Lifter, VAR.331832-332832

1шт.

12

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

13

5187370

LIFT ARM

LH, ASSY

1шт.

14

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

65V, 75V, 85V, 95V

2шт.

15

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

65V, 75V, 85V, 95V

2шт.

16

87696306

STOP

ASSY, Incl 18-23, 75N,85N, 95N

1шт.

17

5187400

LIFT ARM

, Serial Range: -`0

1шт.

Electronic Lifter, VAR.331832-332832

1шт.

18

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

19

5194677

BOLT,Bolt

1шт.

20

47134218

KNOB

1шт.

21

47134219

ADJUSTMENT SCREW,M8 x 1.25 x 63mm L

1шт.

22

87696283

SUPPORT

1шт.

23

87696305

STOP

1шт.

24

10335010

DOWEL,M5 x 22

1шт.

Выбрано товаров: 27
