Запчасти Case IH FARMALL 85N (1.82.6) - HYDRAULIC LIFT INNER CYLINDER (07) - HYDRAULIC SYSTEM

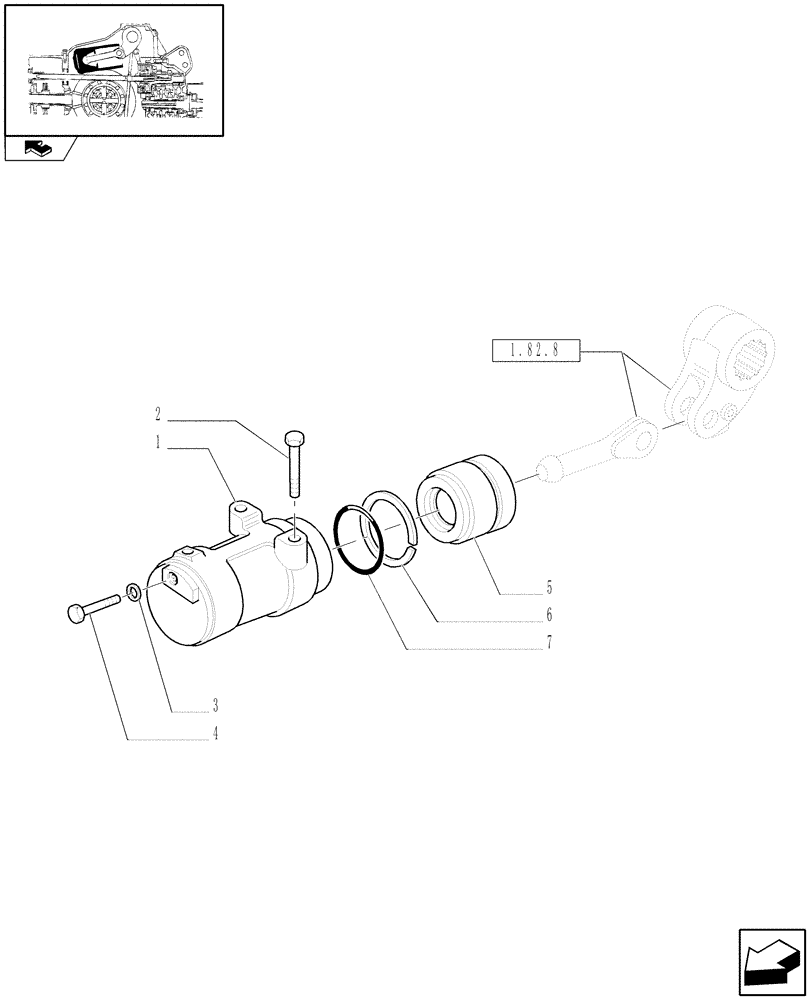

Схема запчастей Case IH FARMALL 85N - (1.82.6) - HYDRAULIC LIFT INNER CYLINDER (07) - HYDRAULIC SYSTEM
home
4
2
7
5
6
3
1.82.8
1

Артикул

Название

Примечание

Количество

1

5176521

CYLINDER,95.04mm Bore Dia

1шт.

2

15981334

BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9

2шт.

3

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

4

15977521

BOLT,Hex, M14 x 1.5 x 60mm, Cl 8.8

1шт.

5

5176597

PISTON,95mm Bore, 68mm W

1шт.

6

5176620

O-RING,Quad, 4.2mm Thk x 85.7mm ID

1шт.

7

14465580

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

Выбрано товаров: 7
