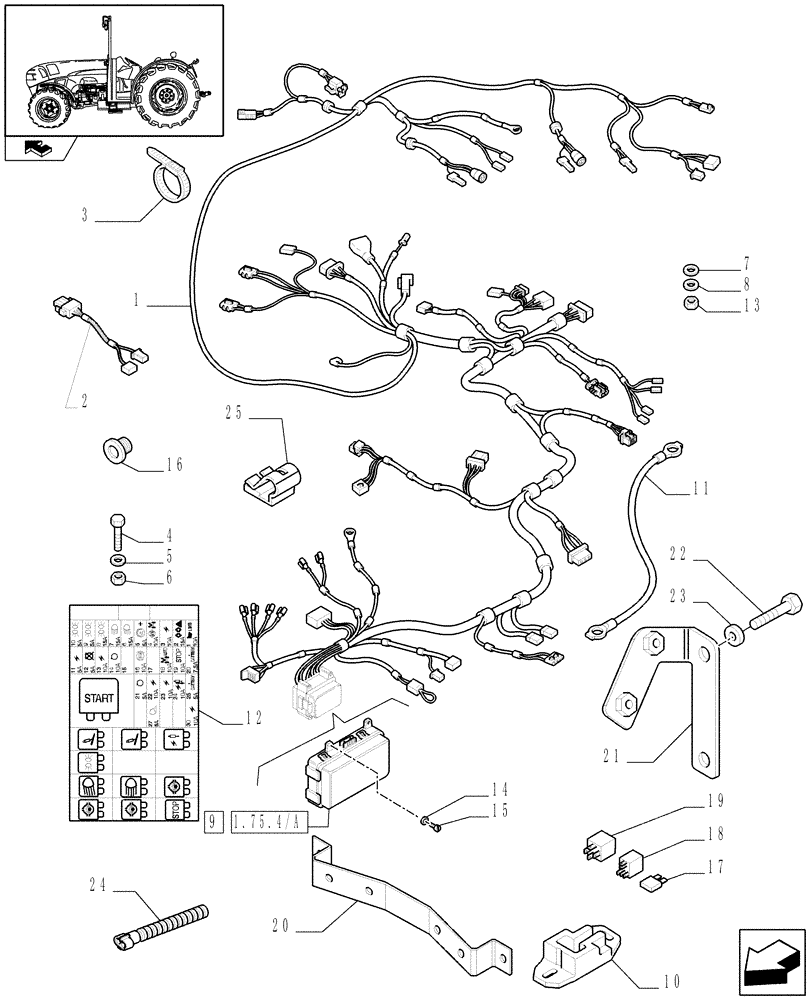

Запчасти Case IH FARMALL 85N (1.75.4[04]) - MAIN HARNESS - L/CAB (06) - ELECTRICAL SYSTEMS

1

84283004

ELECTRIC CABLE

Main, ASSY, Incl 9, 14, 15, Serial Range: -`0

1шт.

For Mechanical Diff. Lock - 2WD

1шт.

1

84489416

WIRE HARNESS

Main, ASSY, Incl 9, 14, 15, Serial Range: -`0

1шт.

For Standard Steer Front Axle

1шт.

1

84283005

ELECTRIC CABLE

Main, ASSY, Incl 9, 14, 15, Serial Range: -`0

1шт.

For Hydraulic Diff. Lock - 2WD

1шт.

1

47393159

WIRE HARNESS

Main, for 4WD

1шт.

2

87319903

ELECTRIC CABLE

4WD

1шт.

3

85805383

CABLE TIE

28шт.

4

13273924

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

3шт.

4

10378821

SCREW

4шт.

5

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

Ground

3шт.

6

15896414

NUT,M5, Cl 8

2шт.

7

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

8

12647824

WASHER,6.15mm ID x 16mm OD x 3mm Thk

1шт.

9

5198692

FUSE HOLDER

1шт.

10

87543128

HOSE CLIP

1шт.

11

87309787

ELECTRIC CABLE

Ground

1шт.

12

87705735

DECAL

1шт.

13

15896211

NUT,M6, Cl 8

1шт.

14

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

15

13276214

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

4шт.

16

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

17

10395890

FUSE,5A, Mini, Beige

5A

1шт.

17

87522595

FUSE,7.5A, Mini, Brown

7.5A

1шт.

17

87522597

FUSE,10A, Mini, Red

10A

1шт.

17

87524877

FUSE,15A, Mini, Blue

15A

1шт.

17

10401190

FUSE,20A, Mini, Yellow

20A

1шт.

17

10401290

FUSE,25 amp Mini

25A

1шт.

17

10402190

FUSE,30A, Mini

30A

1шт.

18

47127781

RELAY,12V, 20A, Micro, N.O.

NO, 20A

1шт.

18

82023238

RELAY,12V, 20A

NC, 20A

1шт.

19

83989947

RELAY,70A

70A

1шт.

20

84146231

BRACKET

1шт.

21

84146213

BRACKET

1шт.

22

10977924

BOLT,Hex, M5 x 18mm, Cl 8.8, Full Thd

2шт.

23

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

2шт.

24

87345428

TERMINAL CONNECTOR,120Ohm/0.5W, 42 Pins

1шт.

25

5180912

SPRING CLIP

75N, 85N, 95N

3шт.
