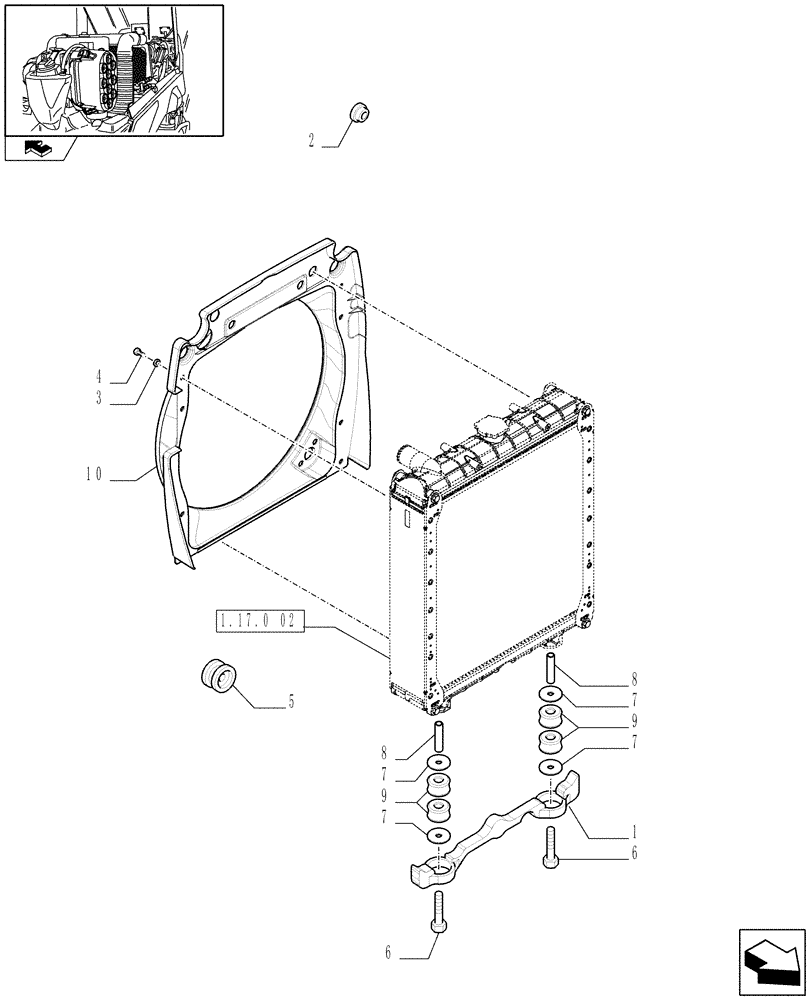

Запчасти Case IH FARMALL 85N (1.17.0[03]) - RADIATOR PROTECTIVE SEALS AND CONVEYOR (02) - ENGINE EQUIPMENT

1

87747288

SEAL

1шт.

2

5120060

PLUG,30mm, Black

1шт.

3

14499431

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

8шт.

4

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

8шт.

5

10397480

GROMMET,14mm ID x 20mm Groove D x 27mm OD

14 x 2.5

1шт.

5

10402480

GROMMET,18mm ID x 25mm Groove D x 33mm OD

18 x 2.5

1шт.

5

10397580

INSULATING RING,16mm ID x 22mm Groove D x 29mm OD

16 x 2.5

1шт.

6

15971624

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

7

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

8

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

9

5108225

RUBBER MOUNTING

4шт.

10

87489771

GUARD

1шт.
