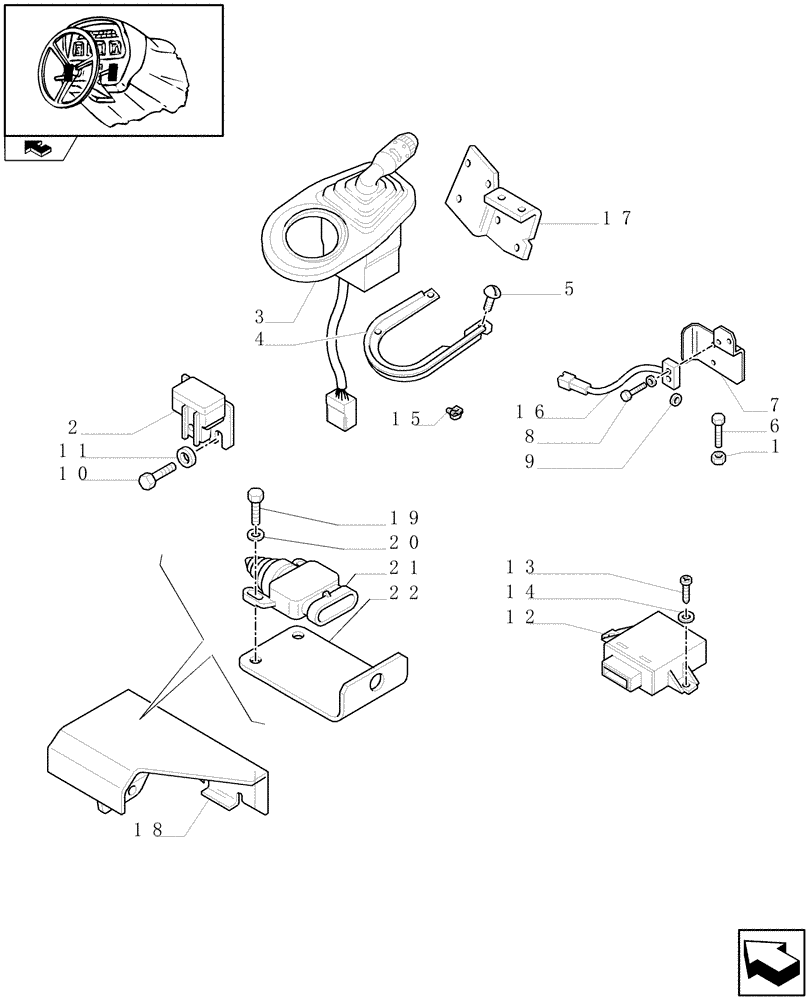

Запчасти Case IH FARMALL 85N (1.92.74[02]) - ELECTRIC CONTROLS (10) - OPERATORS PLATFORM/CAB

1

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

2

47130085

SENSOR

1шт.

75N Model, 85N Model, 95N Model

1шт.

3

87677191

LIGHT SWITCH

1шт.

Lights Control Switch

1шт.

4

5173820

RUBBER STRIP

1шт.

5

15663401

SELF-TAP SCREW,Cross Oval Hd, M4.2 x 22mm

1шт.

5

15643904

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

6

14441027

SCREW,Flat Csk Hd, M5 x 30mm, Cl 8.8, Full Thd

M5 x 30

1шт.

7

87753632

BRACKET

W/CAB

1шт.

7

87752731

BRACKET

L/CAB

1шт.

8

13271814

SCREW,Pozidriv Pan Hd, M4 x 8mm

2шт.

8

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

2шт.

9

87566484

MAGNET

1шт.

10

13272011

SCREW,Pozidriv Pan Hd, M4 x 12mm, Cl 5.8, Full Thd

2шт.

11

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

12

87577636

FLASHER UNIT

1шт.

Turn Indicator, ISO

1шт.

13

13273921

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

1шт.

14

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

1шт.

15

14372671

SPRING NUT,M4.2, U, 12.4mm long

1шт.

16

87539616

HAND BRAKE

Hand Brake, L/CAB

1шт.

17

5186379

BRACKET

11шт.

18

5191810

COVER

1шт.

19

10445721

SCREW,Hex, M4 x 25mm, Cl 8.8, Full Thd

2шт.

19

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

L/CAB

2шт.

540/540E PTO less Ground Speed, VAR.333804

1шт.

20

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

20

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

L/CAB

2шт.

540/540E PTO less Ground Speed, VAR.333804

1шт.

21

87484878

LIMIT SWITCH

PTO Safety

1шт.

21

47137022

SWITCH

L/CAB

1шт.

540/540E PTO less Ground Speed, VAR.333804

1шт.

22

87481920

BRACKET

1шт.
