Запчасти Case IH FARMALL 85N (1.92.33) - REAR MECHANICAL DIFFERENTIAL LOCK FOR 2WD - PEDAL (VAR.330387 / 743511) (10) - OPERATORS PLATFORM/CAB

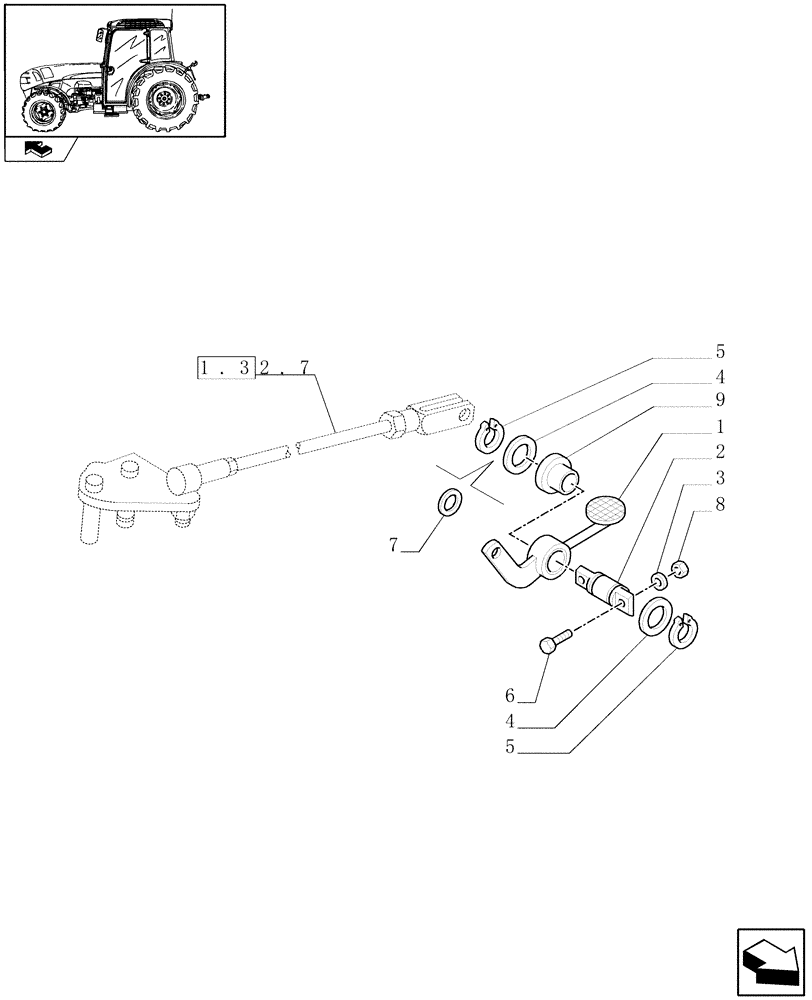

Схема запчастей Case IH FARMALL 85N - (1.92.33) - REAR MECHANICAL DIFFERENTIAL LOCK FOR 2WD - PEDAL (VAR.330387 / 743511) (10) - OPERATORS PLATFORM/CAB
3
5
4
4
1.32.7
2
5
1
home
6
8
9
7

Артикул

Название

Примечание

Количество

1

5188745

PEDAL

1шт.

2

5188383

PIN,21mm x 68mm OD

1шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

4

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

2шт.

5

11066976

SNAP RING,M21, Ext

2шт.

6

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

2шт.

7

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

21 x 35

1шт.

8

43362

NUT,M8 x 1.25, Cl 10

2шт.

9

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

1шт.

Выбрано товаров: 9
