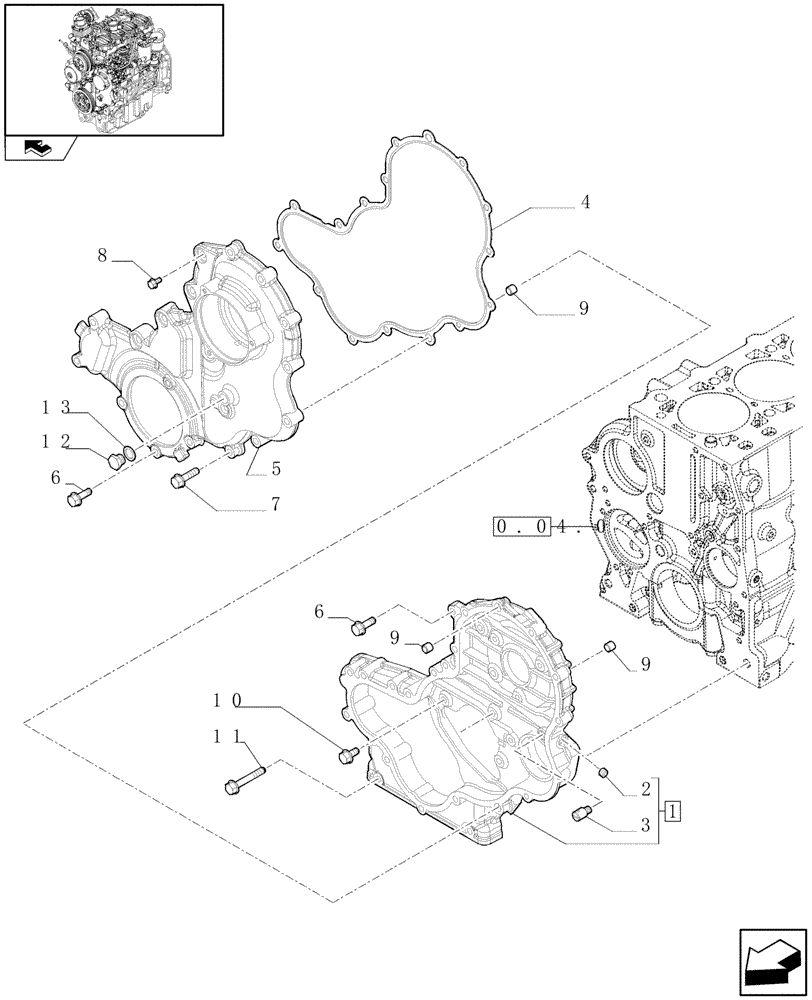

Запчасти Case IH FARMALL 85N (0.04.3[01]) - ENGINE BLOCK FRONT COVER (01) - ENGINE

1

504244657

HOUSING

ASSY

1шт.

2

504051236

PLUG,Threaded, 1/8"

D = 1/8"

1шт.

3

504204989

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

1шт.

4

504244659

GASKET

1шт.

5

504244660

COVER

1шт.

6

16586424

SCREW,M8 x 25mm

M8 x 25

4шт.

7

16586624

SCREW,M8 x 35mm

M8 x 35

11шт.

8

4798845

BOLT,M8 x 1.25 x 16.50mm

2шт.

9

99435557

DOWEL,8.50mm Dia

D = 8.5

4шт.

10

98401723

BOLT,Hex, M8 x 1.25 x 12mm

M8 x 1.25 x 12

5шт.

11

16586924

BOLT,Hex, M8 x 50mm

M8 x 50

6шт.

12

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

13

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

14 x 1.5 x 20

1шт.
