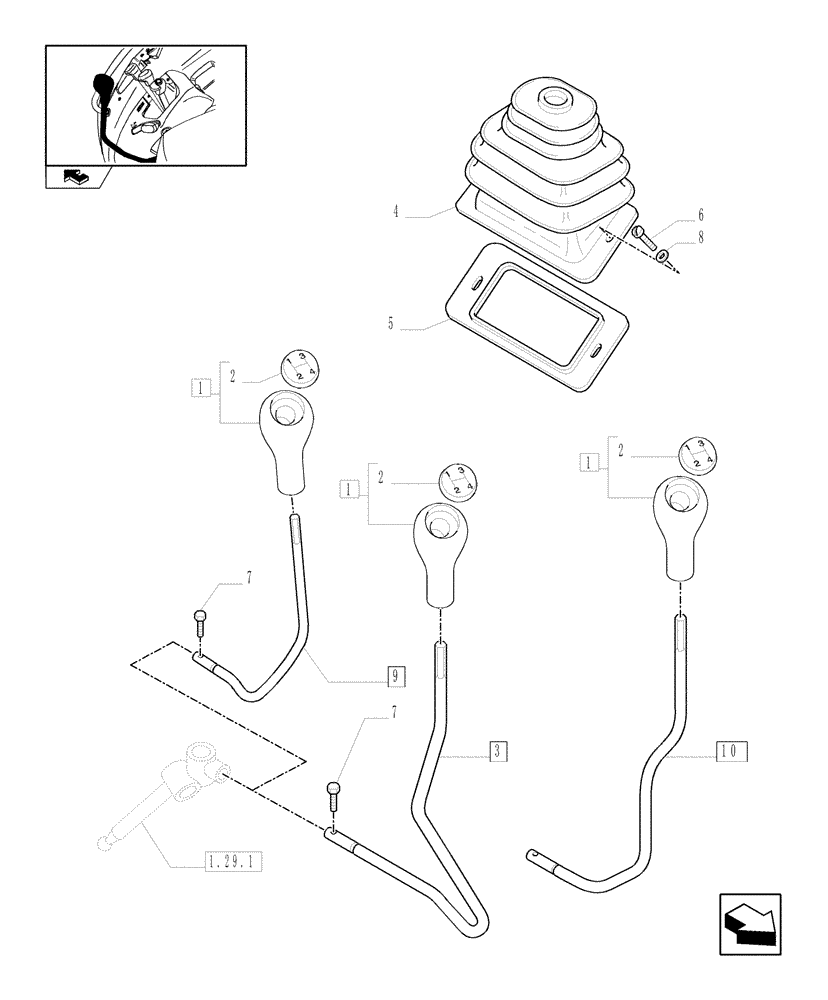

Запчасти Case IH FARMALL 85N (1.92.29[01]) - TRANSMISSION EXTERNAL SHIFTING CONTROLS - C7204 (10) - OPERATORS PLATFORM/CAB

1

47056480

KNOB

1шт.

2

47056542

IDEOGRAM

1шт.

3

47129629

LEVER

Incl. 1, 2, 7, W/CAB

1шт.

75N Model, 85N Model, 95N Model

1шт.

4

87528777

BELLOWS

1шт.

5

5188429

CAPPING

L=4

1шт.

5

5190510

FRAME

L=7

1шт.

6

13283714

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd, Cone Pt

2шт.

7

44013453

SCREW,Hex, M12 x 1.25 x 33mm

M12x28

1шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

9

47129598

LEVER

Incl. 1, 2, 7 L/CAB

1шт.

10

87376736

LEVER

Incl. 1, 2, 7, W/CAB

1шт.

65V Model, 75V Model, 85V Model, 95V Model

1шт.
