Запчасти Case IH FARMALL 85N (1.89.6/08[02]) - HYDRAULIC THREE POINT HITCH WITH QUICK ATTACH - PIPES (VAR.331905-331906) (09) - IMPLEMENT LIFT

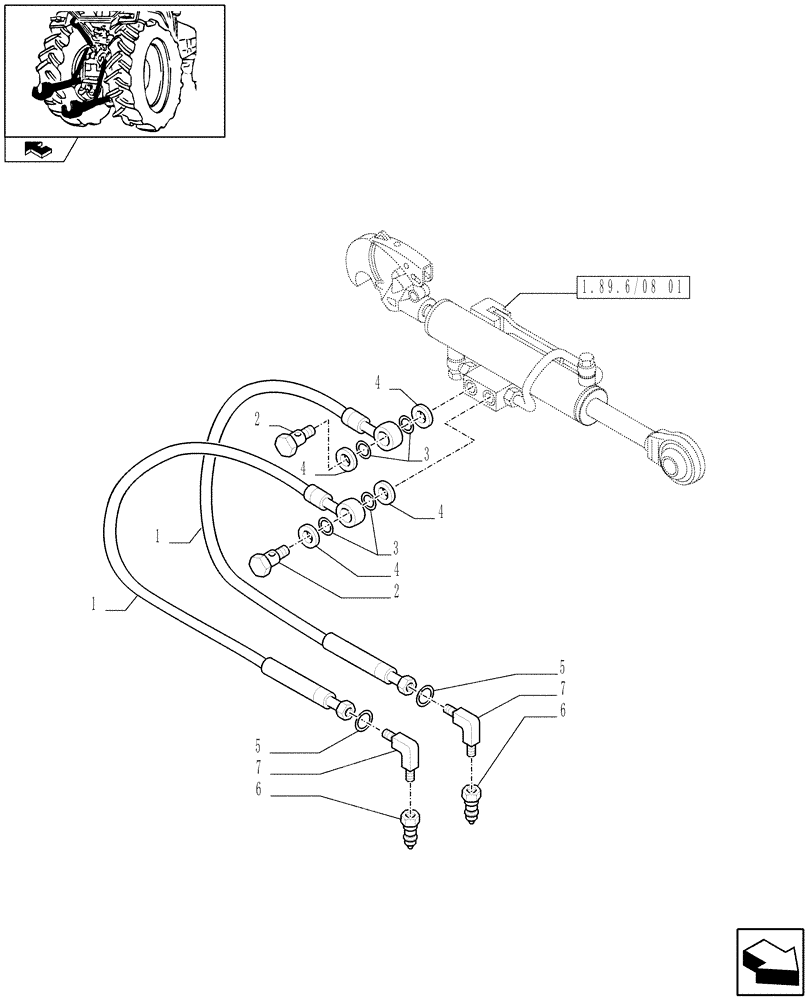

Схема запчастей Case IH FARMALL 85N - (1.89.6/08[02]) - HYDRAULIC THREE POINT HITCH WITH QUICK ATTACH - PIPES (VAR.331905-331906) (09) - IMPLEMENT LIFT
2
1
4
home
1.89.6/08 01
7
3
6
5
4
3
5
7
4
4
1
2
6

Артикул

Название

Примечание

Количество

1

84347389

HYD TUBE

2шт.

2

84347388

HYD CONNECTOR,M16 x 1.5 x 47mm L

2шт.

3

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

4шт.

4

5189534

WASHER,25.8mm ID x 30.2mm OD x 1.1mm Thk

4шт.

5

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

M16

2шт.

6

5139101

2шт.

7

5179497

HYD CONNECTOR,9/16-18 UNF

2шт.

Выбрано товаров: 7
