Запчасти Case IH FARMALL 85N (1.89.6/08[01]) - HYDRAULIC THREE POINT HITCH WITH QUICK ATTACH (VAR.331905-331906) (09) - IMPLEMENT LIFT

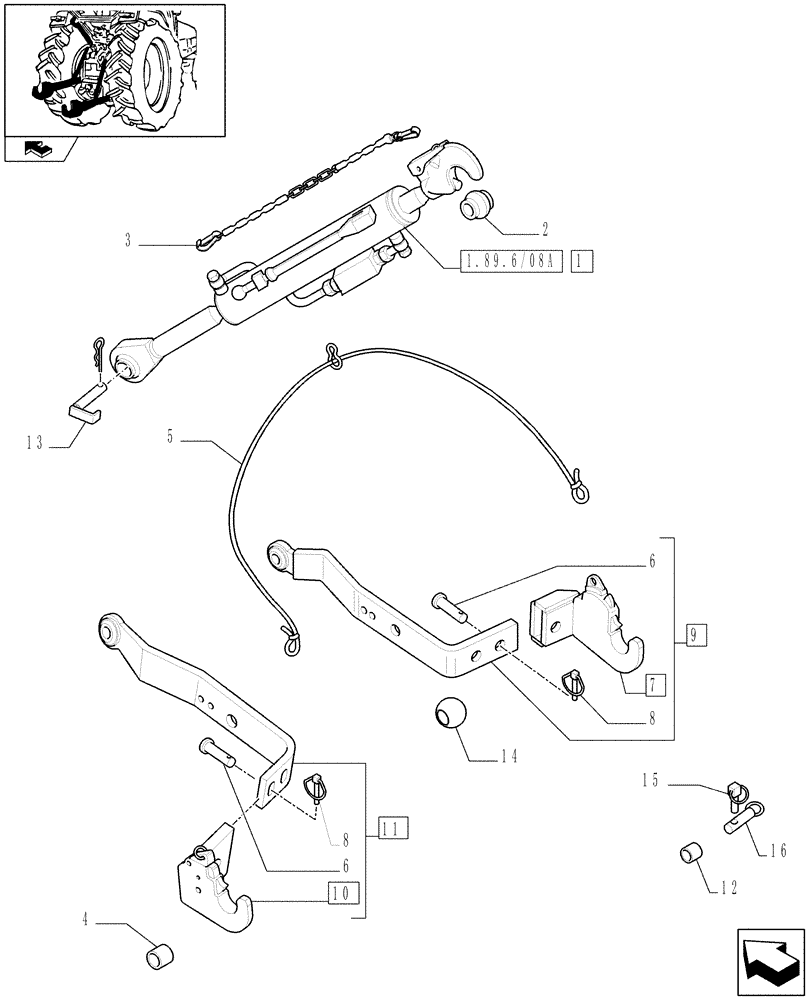

Схема запчастей Case IH FARMALL 85N - (1.89.6/08[01]) - HYDRAULIC THREE POINT HITCH WITH QUICK ATTACH (VAR.331905-331906) (09) - IMPLEMENT LIFT
8
8
9
1
16
5
2
12
10
3
7
1.89.6/08a
home
11
6
15
13
4
14
6

Артикул

Название

Примечание

Количество

1

84345887

OPERATOR MANUAL FR

1шт.

2

5172480

BALL,25.4mm ID x 50mm OD

(CAT.2)

1шт.

3

5174395

CABLE,1250mm L, Cat 2, Red Ruby

1шт.

4

5192619

BUSHING,22mm ID x 28.4mm OD x 35mm L

2шт.

5

5116063

ROPE,4500mm L

1шт.

6

5194126

PIN

2шт.

7

5194129

TRACK ROD END ASSY

RH

1шт.

8

47133246

LOCK PIN,7.5mm OD x 42mm L

2шт.

9

87710988

ARM

RH

1шт.

Three Point Linkage for 28" and 30"Tyres, VAR.331905

1шт.

9

87710986

ARM

RH

1шт.

Three Point Linkage for 24" Tyres, VAR.331906

1шт.

10

5194130

TRACK ROD END ASSY

LH

1шт.

11

87710989

ARM

LH

1шт.

Three Point Linkage for 28" and 30"Tyres, VAR.331905

1шт.

11

87710987

ARM

LH

1шт.

Three Point Linkage for 24" Tyres, VAR.331906

1шт.

12

5134566

BUSHING,19.4mm ID x 25mm OD x 44mm L

1шт.

13

5181097

PIN,25.5mm OD x 135mm L

1шт.

14

822441

BUSHING,29mm ID x 56mm OD x 44.5mm L

2шт.

15

5166585

LOCK PIN,11mm OD

2шт.

16

561831

PIN,19mm OD x 100mm L

1шт.

Выбрано товаров: 22
