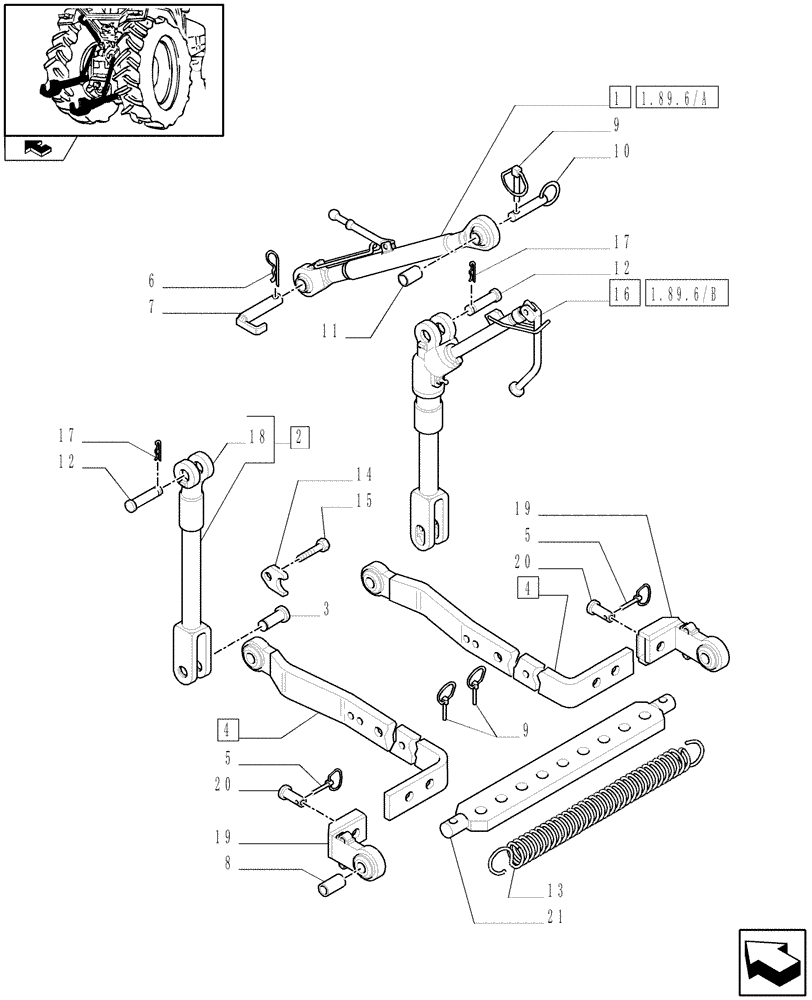

Запчасти Case IH FARMALL 85N (1.89.6[03]) - IMPLEMENT CARRIER (09) - IMPLEMENT LIFT

1

5199265

TOP LINK

ASSY

1шт.

2

5193421

LIFT LINK

1шт.

3

5193422

PIN,26mm OD x 64mm L

2шт.

4

87710990

ARM

Incl. 5, 19, 20

2шт.

5

47133246

LOCK PIN,7.5mm OD x 42mm L

2шт.

6

5112606

COTTER PIN,2.5mm OD x 66.5mm L

1шт.

7

5181097

PIN,25.5mm OD x 135mm L

1шт.

8

5192619

BUSHING,22mm ID x 28.4mm OD x 35mm L

22 x 28.4 x 35

24шт.

9

5166585

LOCK PIN,11mm OD

3шт.

10

561831

PIN,19mm OD x 100mm L

DIA=19MM (CAT.II)

1шт.

10

822483

PIN,25.5mm OD x 137mm L

DIA=25.5MM (CAT.II)

1шт.

11

5134566

BUSHING,19.4mm ID x 25mm OD x 44mm L

2шт.

12

5188374

PIN,18mm OD x 59mm L

2шт.

13

4959776

SPRING,33mm OD x 400mm L

1шт.

14

5193751

COVER PLATE

1шт.

15

10910321

BOLT,Hex, M8 x 1 x 14mm, Cl 8.8, Full Thd

2шт.

16

5195141

TIE-ROD

, Serial Range: -C6949

1шт.

16

84401603

LIFTING ROD

, Start Serial: D6949

1шт.

17

5188412

COTTER PIN,25.6mm OD x 48mm L

2шт.

18

5194133

YOKE

1шт.

19

5194124

TRACK ROD END ASSY

2шт.

20

5194126

PIN

2шт.

21

4950973

CROSSRAIL,820mm L x 80mm W x 32mm Thk

1шт.

CAT. II Linkage Drawbar, VAR.330899

1шт.
