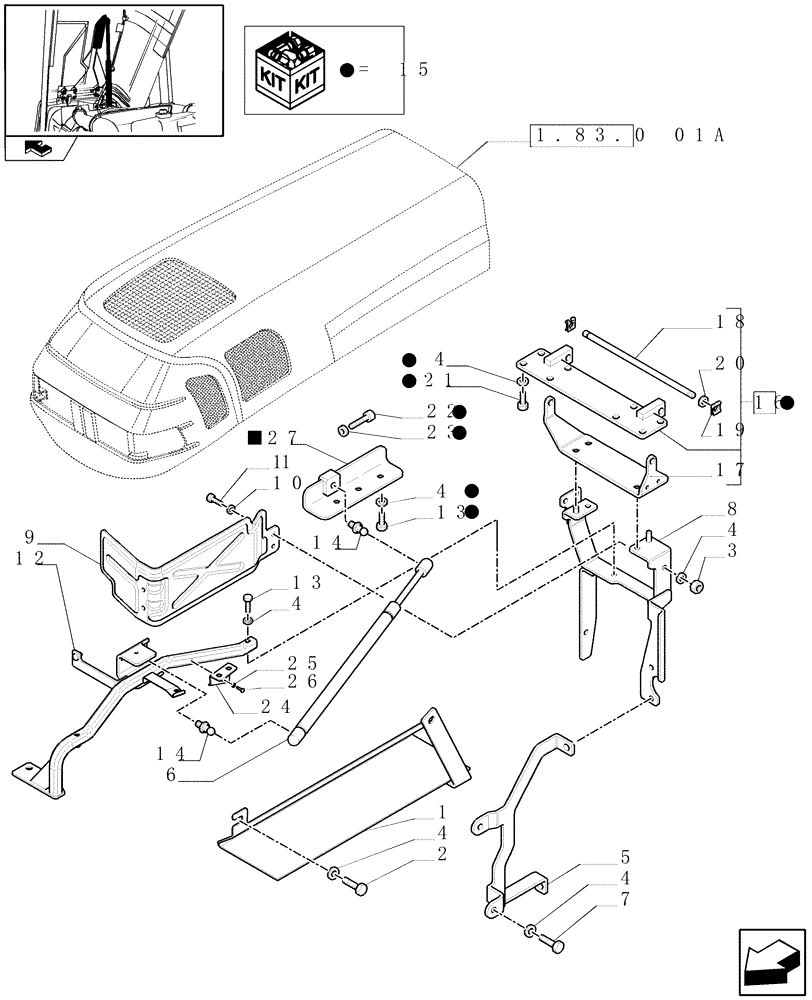

Запчасти Case IH FARMALL 85N (1.83.0[06]) - HOOD GAS SPRING, HINGE SUPPORT AND HEAT SHIELD PROTECTION - C7050 (08) - SHEET METAL

1

84161597

HEAT SHIELD

1шт.

2

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

3

16100824

NUT,M8, Cl 10

1шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

13шт.

5

87686356

BRACKET

LH

1шт.

6

87489635

SHOCK ABSORBER

1шт.

7

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

8

87392554

SUPPORT

1шт.

P.N. 87392554 must be Associate with P.N. 87343821

1шт.

9

87737380

GUARD

1шт.

10

14498821

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

3шт.

11

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

3шт.

12

84168024

SUPPORT

1шт.

13

16043314

3шт.

14

87603835

BALL STUD,10mm D, M8 x 13mm

2шт.

15

87744919

COWLING

See Also Pages 01, 02, Serial Range: -C6442

1шт.

15

84225439

ENGINE HOOD PANEL

See Also Pages 01, 02, Serial Range: D6442-C6517

1шт.

15

84291096

COWLING

See Also Pages 01, 02, Start Serial: D6517

1шт.

16

87689077

HINGE

1шт.

17

87343821

U-BRACKET

1шт.

P.N. 87343821 must be Associate with P.N. 87392554

1шт.

18

87689078

PIN

1шт.

19

11064071

CLIP,M8 x 6 x 0.94mm

2шт.

20

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

21

16043514

SCREW,Hex, M8 x 22mm, Cl 5.8

8шт.

22

5113531

SCREW,M4 x 10mm, Cl 8.8

4шт.

23

14497731

WASHER,4.3mm ID x 8mm OD x 0.8mm Thk

4шт.

24

84170113

BRACKET

1шт.

25

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

26

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

27

84209441

BRACKET

1шт.
