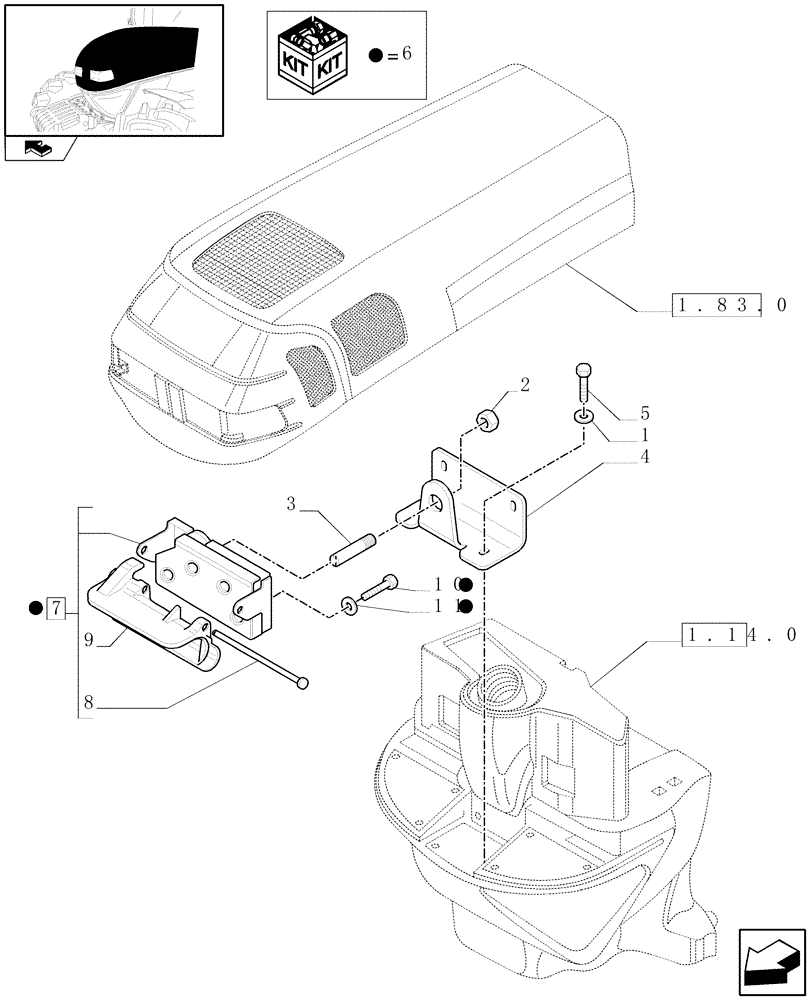

Запчасти Case IH FARMALL 85N (1.83.0[02]) - HOOD LOCK AND FIXING BRACKETS - C6517 (08) - SHEET METAL

1

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

4шт.

2

12164714

NUT,M10 x 1.25, Cl 8

1шт.

3

87636420

PIN

1шт.

4

87636419

STRIKER PLATE

1шт.

5

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

6

87744919

COWLING

See also Pages 02, 06, Serial Range: -C6442

1шт.

6

84225439

ENGINE HOOD PANEL

See also Pages 02, 06, Start Serial: D6442

1шт.

7

87632494

LOCK

1шт.

8

87622339

PIN,6mm OD x 120.5mm L

D=6

1шт.

9

87622338

HANDLE

1шт.

10

10902474

4шт.

11

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

M6 x 15

4шт.
