Запчасти Case IH FARMALL 85N (1.41.0[02]) - 2WD FRONT AXLE - BALL FUSE AND HUBS (VAR.331581-332581 / 743515) (04) - FRONT AXLE & STEERING

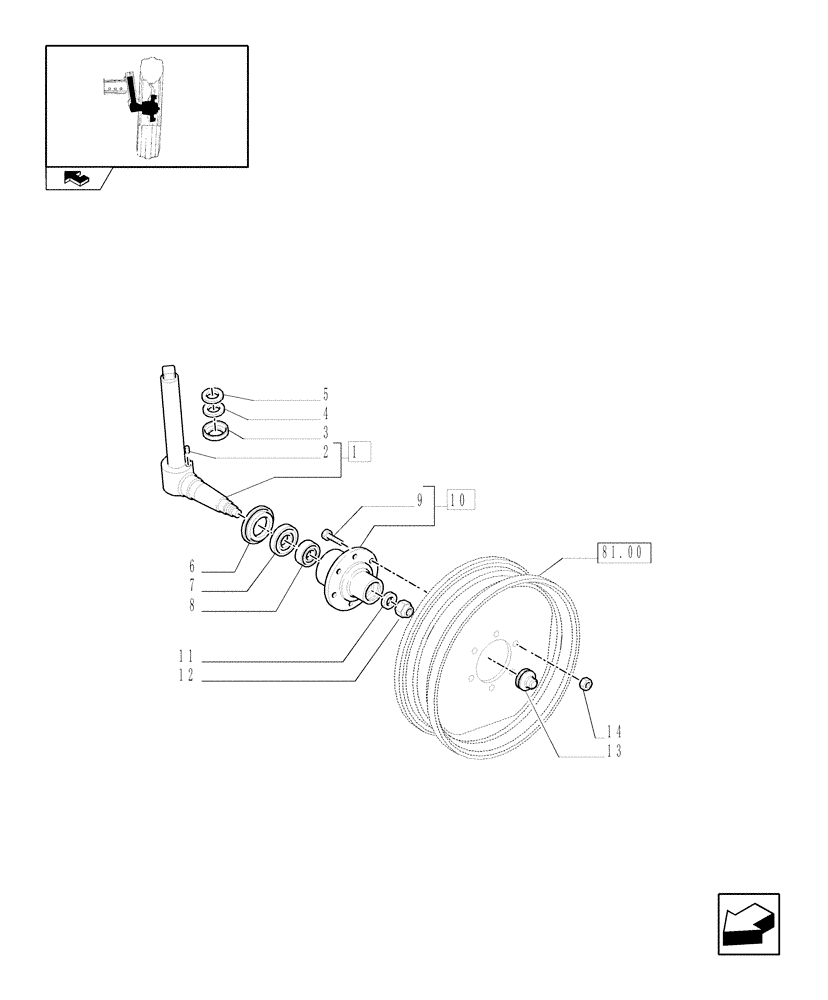

Схема запчастей Case IH FARMALL 85N - (1.41.0[02]) - 2WD FRONT AXLE - BALL FUSE AND HUBS (VAR.331581-332581 / 743515) (04) - FRONT AXLE & STEERING
81.00
3
1
4
9
14
home
13
7
2
11
8
6
12
5
10

Артикул

Название

Примечание

Количество

1

5183585

STUB AXLE/STEERING S

2шт.

65V Model, 75V Model, 85V Model, 95V Model

1шт.

1

5190124

STUB AXLE/STEERING S

2шт.

75N Model, 85N Model, 95N Model

1шт.

2

10486110

DOWEL,M4 x 8

4 x 18

2шт.

3

5126277

CUP,30.5mm ID x 48.5mm OD x 7mm Thk

2шт.

4

5144754

THRUST WASHER,30mm ID x 48mm OD x 4mm Thk

2шт.

5

567499

THRUST WASHER,30mm ID x 40mm OD x 4mm Thk

2шт.

6

4951077

SEAL,50.7mm ID x 91.5mm OD x 11mm Thk

2шт.

7

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

2шт.

8

5132343

TAPERED BEARING,25.4mm ID x 57.17mm OD x 19.43mm W

2шт.

9

81816580

WHEEL BOLT,1/2" - 20 x 1 3/4"

12шт.

10

5183466

HUB

2шт.

11

559715

WASHER,20.5mm ID x 32mm OD

2шт.

12

14044271

NUT,Hex, M20 x 1.5

M20

2шт.

13

249127

HUB CAP

2шт.

14

47126502

WHEEL NUT

1/2"-20

12шт.

Выбрано товаров: 17
