Запчасти Case IH FARMALL 85N (1.40.2) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (30 KM/H) - PIPES (VAR.330145) (04) - FRONT AXLE & STEERING

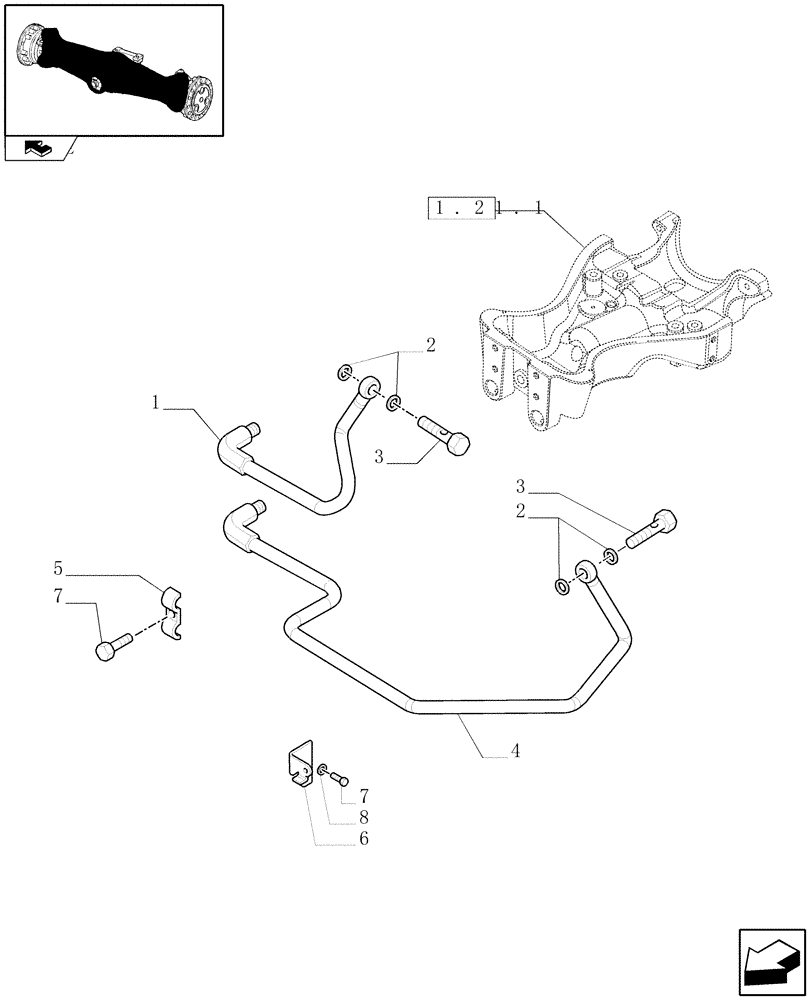

Схема запчастей Case IH FARMALL 85N - (1.40.2) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (30 KM/H) - PIPES (VAR.330145) (04) - FRONT AXLE & STEERING
3
6
home
7
3
2
4
8
1
7
2
1.21.1
5

Артикул

Название

Примечание

Количество

1

47125598

RIGID TUBE

1шт.

2

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

4шт.

3

4864083

BANJO BOLT,M14 x 1.5 x 30mm

2шт.

4

47125593

RIGID TUBE

1шт.

5

4999554

CLAMP,2 Hoses

1шт.

6

47125596

RETAINER COLLAR

1шт.

7

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

8

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

1шт.

Выбрано товаров: 8
