(90.150.210) - VAR - 759022 - REMOTE CONTROL VALVE, LEVER, TRIM, CAB

Запчасти Case IH FARMALL 80N (90.150.210) - VAR - 759022 - REMOTE CONTROL VALVE, LEVER, TRIM, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

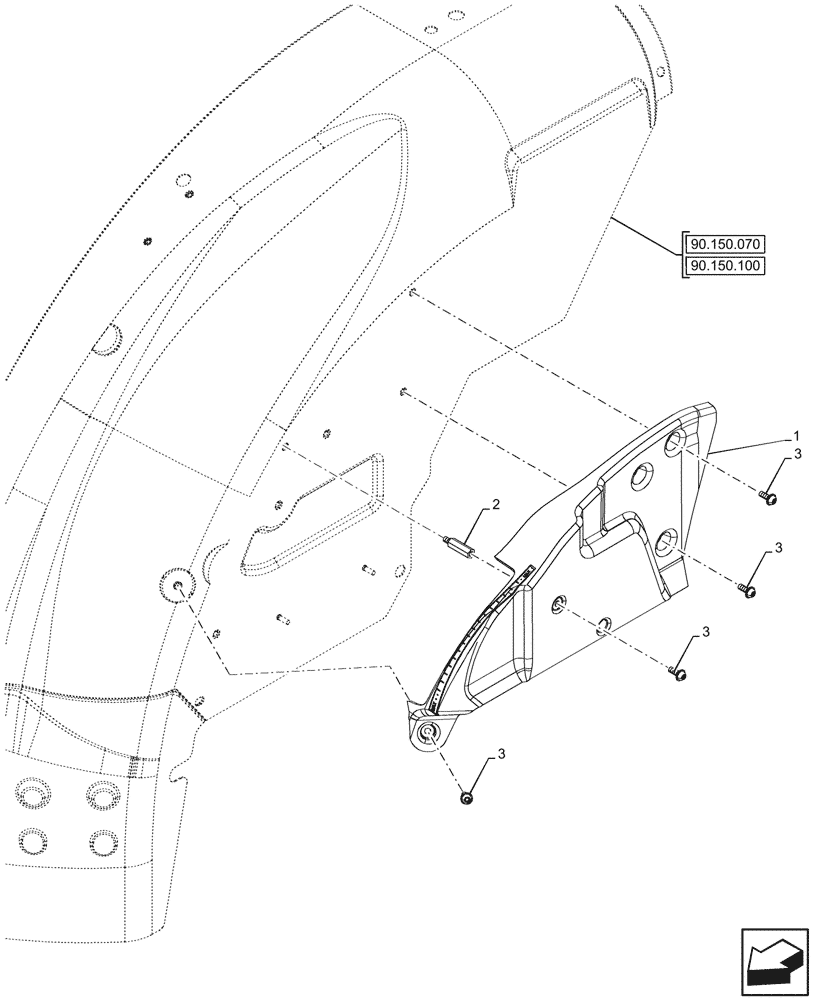

Схема запчастей Case IH FARMALL 80N - (90.150.210) - VAR - 759022 - REMOTE CONTROL VALVE, LEVER, TRIM, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.070
1
3
2
3
3
3
90.150.100
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47719041

COVER

RH

1шт.

2

47721525

SPACER,Hex, M6 x 1 x 42mm L

LH

1шт.

3

84349421

SCREW,Torx Rnd Wshr Hd, M6 x 16mm, Cl 8.8, Full Thd

4шт.
