Запчасти Case IH FARMALL 80N (90.150.160) - VAR - 759033 - ROOF, W/ SUPER ECO CAB, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

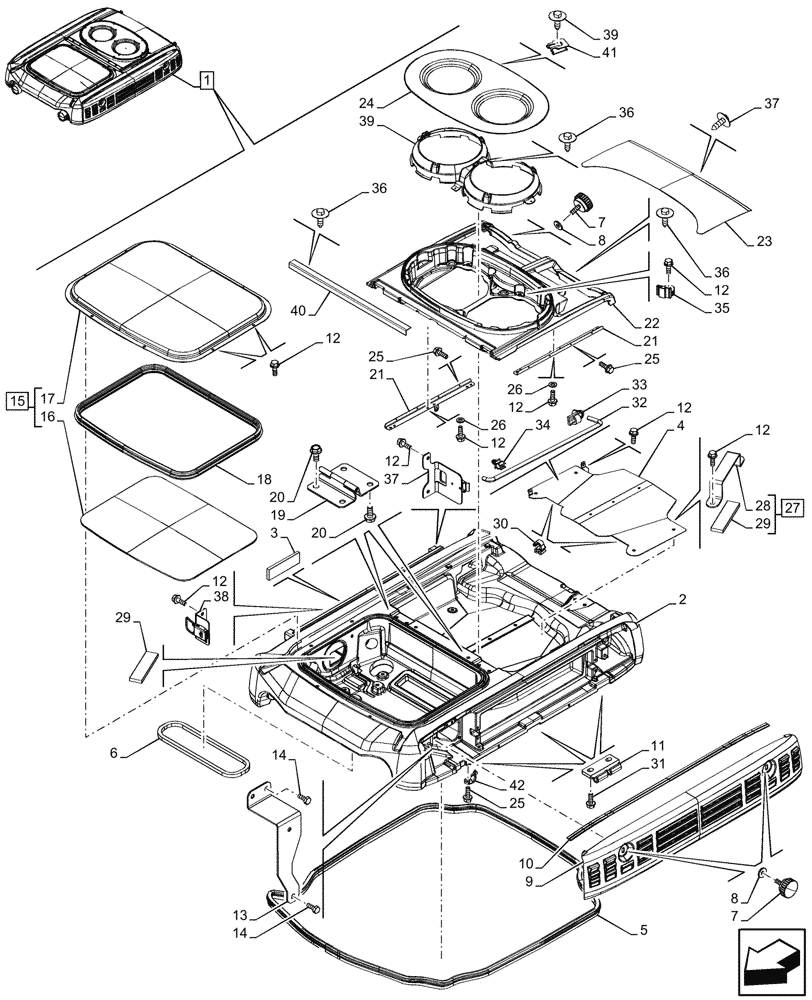

Схема запчастей Case IH FARMALL 80N - (90.150.160) - VAR - 759033 - ROOF, W/ SUPER ECO CAB, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
25
16
6
26
39
24
12
12
42
12
12
34
29
12
32
9
29
27
39
12
26
17
1
37
36
14
40
19
41
20
30
36
38
4
21
8
35
23
5
25
10
25
21
31
28
22
36
15
13
2
8
11
7
14
33
37
20
12
3
18
7

Артикул

Название

Примечание

Количество

1

47978392

ROOF

ASSY, Incl 2 - 42

1шт.

See also Roof Components in Figure 50.100.050, 50.104.040, 50.200.090, 50.200.100, 55.050.040, 55.050.050, 55.050.060, 55.404.220

1шт.

2

NSS

NOT SOLD SEPARAT

Roof, Red, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Label, Incl in 1

1шт.

4

48008819

PLATE

1шт.

5

47704740

GASKET,36mm W x 11mm Thk

1шт.

6

47792463

GASKET,460.5mm L x 134.4mm W x 15mm Thk

1шт.

7

47792468

KNOB

6шт.

8

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6шт.

9

47701694

GRILLE

2шт.

10

47704874

GASKET,1126mm L x 22.6mm W

2шт.

11

47775735

HINGE

6шт.

12

16286024

FLANGE BOLT,Hex, M6 x 16, Full Thd, Cl 8.8

34шт.

13

47781190

BRACKET

1шт.

14

10444614

HEX SOC SCREW,Hex, M4 x 12mm, Cl 5.8

3шт.

15

48024248

COVER

ASSY, Incl 16, 17

1шт.

16

47773037

HEAT SHIELD

1шт.

17

NSS

NOT SOLD SEPARAT

Cover, Incl in 15

1шт.

18

47704860

GASKET,36mm W x 11mm Thk

1шт.

19

47779864

HINGE

2шт.

20

13839011

BOLT,Hex, M8 x 18mm, Full Thd, R50 IND

8шт.

21

47780537

BRACKET

2шт.

22

NSS

NOT SOLD SEPARAT

Condenser Cover, Red, Incl in 1

1шт.

23

48036899

GRILLE

1шт.

24

48024252

CONDENSER

1шт.

25

15516401

SELF-TAP SCREW,Self Tap, Hex, M4 x 2.5 x 16mm

9шт.

26

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

6шт.

27

48009245

BRACKET

ASSY, Incl 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

Bracket, Incl in 27

1шт.

29

48021570

GASKET,60mm L x 20mm W x 3mm Thk

2шт.

30

47704875

FASTENER,10mm ID x 13mm Thk x 19.6mm L

2шт.

31

48043746

SCREW,M6 x 16mm L

12шт.

32

47902793

ROD,8mm Thk x 319.2mm L

1шт.

33

47902792

CLIP,33mm L x 14mm W

1шт.

34

47902796

CLIP,Top Entry, 7.5mm ID x 13.8mm L

1шт.

35

47792470

BRACKET

8шт.

36

48041383

SELF-TAP SCREW

27шт.

37

47792477

LATCH

1шт.

38

47779872

LATCH

1шт.

39

47994903

CONVEYOR

1шт.

40

47994901

GRILLE

1шт.

41

48041361

CLIP,6mm ID x 15mm L x 11.5mm W

6шт.

42

48041363

STRAP

1шт.

Выбрано товаров: 43
