Запчасти Case IH FARMALL 80N (90.150.080) - VAR - 759031, 759033 - FRAME, PLATE, PLUGS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

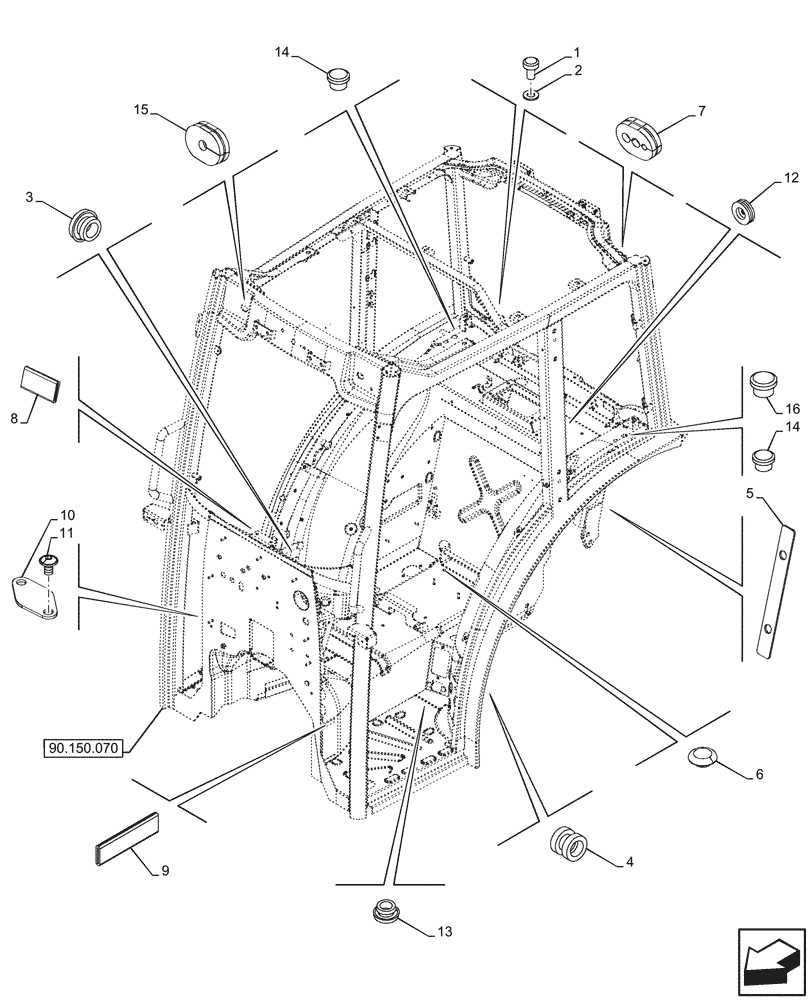

Схема запчастей Case IH FARMALL 80N - (90.150.080) - VAR - 759031, 759033 - FRAME, PLATE, PLUGS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.070
4
15
11
2
8
14
6
12
14
5
9
3
16
13
1
10
7

Артикул

Название

Примечание

Количество

1

5112608

PLUG,9mm, Black

6шт.

2

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

3шт.

3

5140164

PLUG

1шт.

4

10402580

RING,14mm ID x 27mm OD x 7mm Thk

1шт.

5

47446929

RUBBER BUMPER,2x15mm OD x 235mm L

2шт.

6

5155575

PLUG,10mm, Black

2шт.

7

87565347

GROMMET,8mm ID x 28mm x 38mm x 10mm

for Cab NA

1шт.

8

87303663

FLEXIBLE HOSE,10mm ID x 30mm L

1шт.

9

5177320

FLEXIBLE SHEATH,10mm ID x 60mm L

3шт.

10

47839293

COVER

1шт.

11

2700886

HEX SOC SCREW,Hex, M6 x 4 x 10mm, Cl 10.9 BNZ

2шт.

12

10397480

GROMMET,14mm ID x 20mm Groove D x 27mm OD

1шт.

13

5120060

PLUG,30mm, Black

2шт.

14

5120596

PLUG,18mm

2шт.

15

87565310

GROMMET,8mm ID x 28mm x 38mm x 10mm

for Cab EU

3шт.

16

81871841

PLUG,19mm, Black

2шт.

Выбрано товаров: 16
