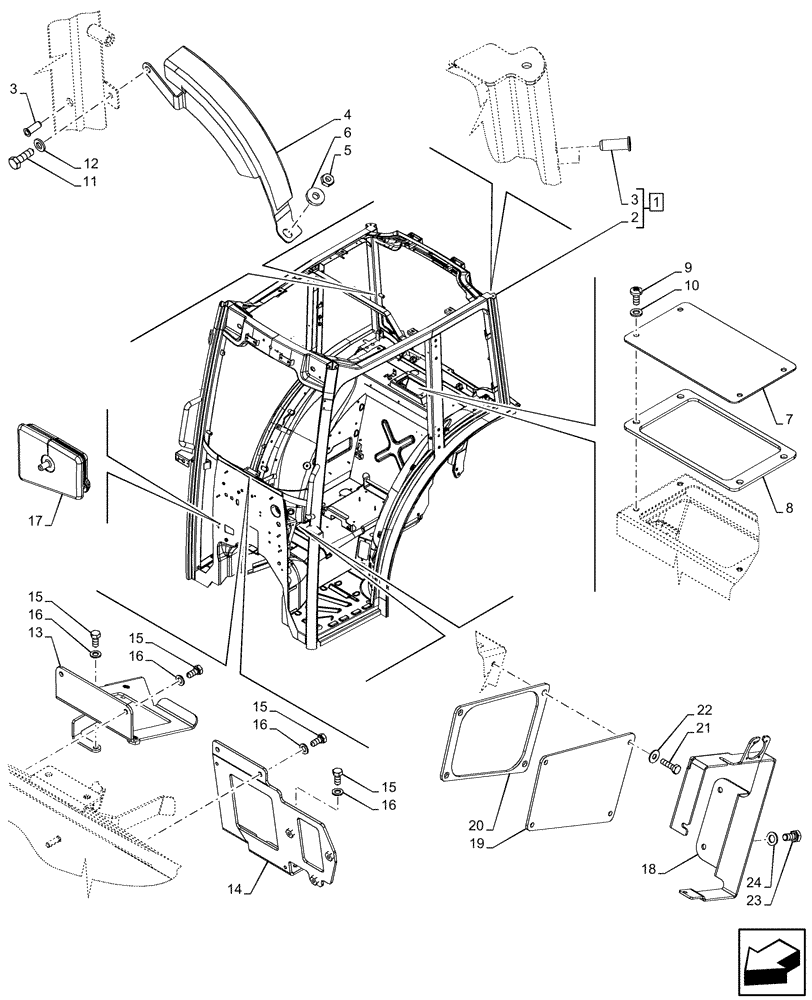

Запчасти Case IH FARMALL 80N (90.150.070) - VAR - 759031, 759033 - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47975749

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Cab, Incl in 1

1шт.

3

85801953

RIVET,M6

3шт.

4

47421420

LID

1шт.

5

10727314

NUT,M6

M6

1шт.

6

12647824

WASHER,6.15mm ID x 16mm OD x 3mm Thk

1шт.

7

47745354

COVER

1шт.

8

47482302

RUBBER BUMPER,2x9mm OD x 212mm L x 120mm W

1шт.

9

13276117

SCREW,Pozidriv Pan Hd, M6 x 14mm, Cl 5.8, Full Thd

4шт.

10

86642465

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

11

10902414

SCREW,M6 x 20

M6 x 20

1шт.

12

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

13

47839259

SUPPORT

1шт.

14

47609961

SUPPORT

1шт.

15

10977621

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

7шт.

16

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

7шт.

17

84494213

GROMMET

1шт.

18

47975898

SUPPORT

1шт.

19

47613364

PLATE

1шт.

20

47532907

SUPPORT

1шт.

21

10902521

SCREW,Hex, M6 x 22mm, Cl 8.8, Full Thd

4шт.

22

14498801

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

4шт.

23

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

24

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
