Запчасти Case IH FARMALL 80N (90.120.050) - VAR - 335859 - CAB, SEAT, MECHANICAL, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

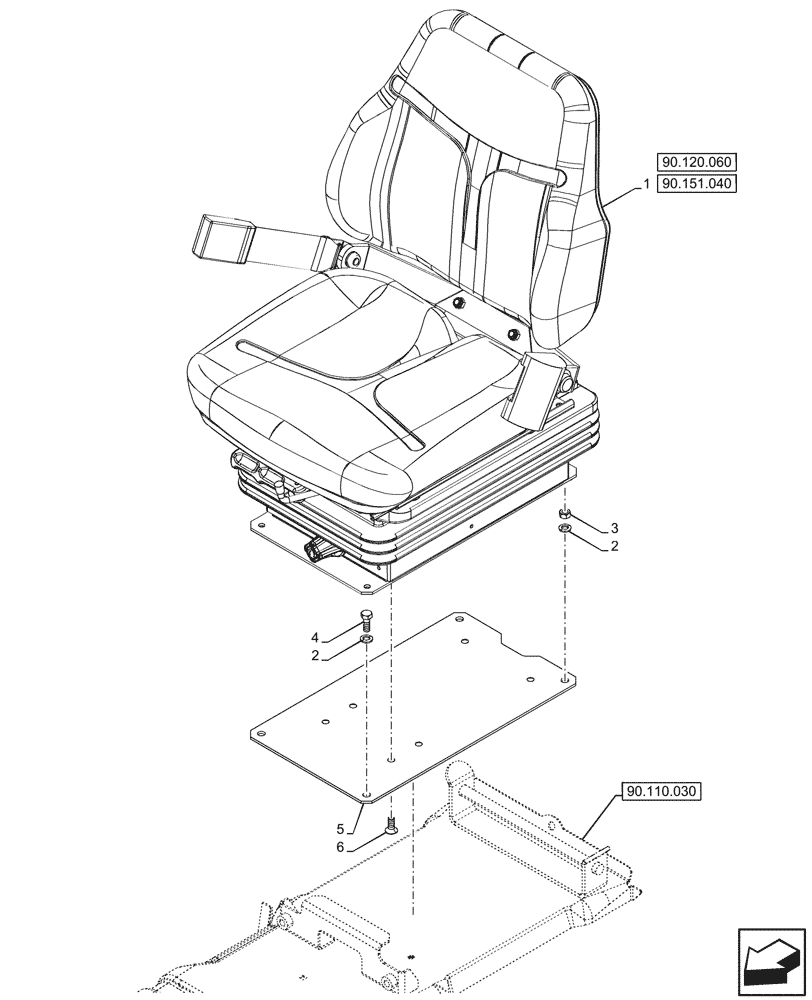

Схема запчастей Case IH FARMALL 80N - (90.120.050) - VAR - 335859 - CAB, SEAT, MECHANICAL, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.030
1
5
4
2
6
3
2
90.120.060
90.151.040

Артикул

Название

Примечание

Количество

1

47368487

DRIVER SEAT

Fabric Case BK5425, ASSY

1шт.

2

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

3

5182253

NUT

2шт.

4

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

2шт.

5

5196614

PLATE

1шт.

6

5182236

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

4шт.

Выбрано товаров: 6
