Запчасти Case IH FARMALL 80N (90.116.110) - VAR - 744478 - REAR FENDER EXTENSION, PARTIALLY WRAP AROUND TYPE, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

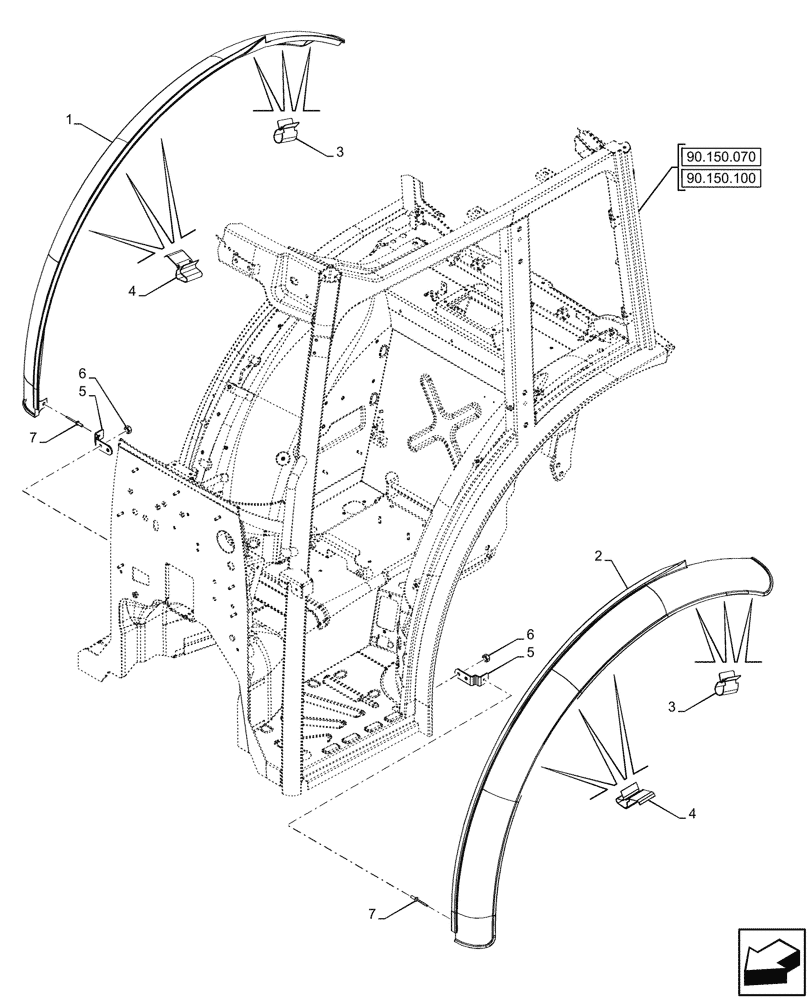

Схема запчастей Case IH FARMALL 80N - (90.116.110) - VAR - 744478 - REAR FENDER EXTENSION, PARTIALLY WRAP AROUND TYPE, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.070
7
2
7
3
6
3
5
4
6
4
5
1
90.150.100

Артикул

Название

Примечание

Количество

1

5188508

FENDER

RH

1шт.

2

5188696

FENDER

LH

1шт.

3

82010838

SPRING CLIP,0.5mm Thk

6шт.

4

87636427

SPRING

14шт.

5

5189533

BRACKET

2шт.

6

5182241

NUT,Hex, M8 x 1.25 x 8.5mm, Cl 04

M8

4шт.

7

5186642

RIVET,Pop, 4.85mm OD x 14.5mm L

2шт.

Выбрано товаров: 7
