Запчасти Case IH FARMALL 80N (90.110.070) - VAR - 341793, 744478 - PLATFORM, REAR FENDER, LOW POSITION, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

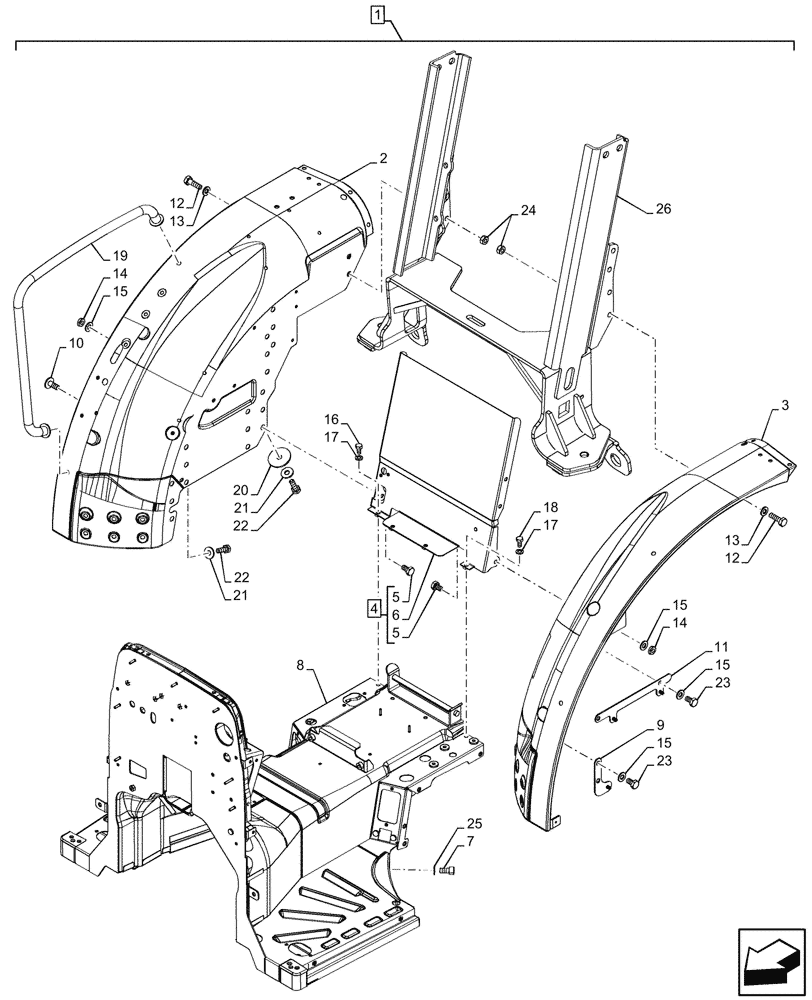

Схема запчастей Case IH FARMALL 80N - (90.110.070) - VAR - 341793, 744478 - PLATFORM, REAR FENDER, LOW POSITION, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
17
22
25
9
16
15
14
23
26
19
5
10
13
15
2
5
6
20
21
13
15
24
18
12
23
15
12
8
14
7
21
11
3
22
17

Артикул

Название

Примечание

Количество

1

48029105

PLATFORM

ASSY, Incl 2 - 26

1шт.

2

47523324

REAR FENDER

1шт.

3

47523335

REAR FENDER

1шт.

4

48029100

BULKHEAD

ASSY, Incl 5, 6

1шт.

5

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

6

NSS

NOT SOLD SEPARAT

Bulkhead, Incl in 4

1шт.

7

14783914

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

6шт.

8

48029103

PLATFORM

1шт.

9

48029067

BRACKET

1шт.

10

14782514

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

4шт.

11

47385920

BRACKET

1шт.

12

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.

13

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

14

10791024

THIN NUT,Thin, M10 x 1.25, Cl 05

6шт.

15

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10шт.

16

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

17

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

18

87015745

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

1шт.

19

84485422

HANDRAIL

1шт.

20

87024930

WASHER,10.8mm ID x 50mm OD x 3mm Thk

1шт.

21

11190674

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD

2шт.

22

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

23

15970421

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

24

12164721

NUT,M10 x 1.25, Cl 10

4шт.

25

12648301

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

6шт.

26

48029097

SUPPORT

1шт.

Выбрано товаров: 26
