(37.108.040) - VAR - 744833 - REAR, HYDRAULIC LIFT, CONTROL LEVER, W/ LIFT-O-MATIC PLUS, CAB

Запчасти Case IH FARMALL 80N (37.108.040) - VAR - 744833 - REAR, HYDRAULIC LIFT, CONTROL LEVER, W/ LIFT-O-MATIC PLUS, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

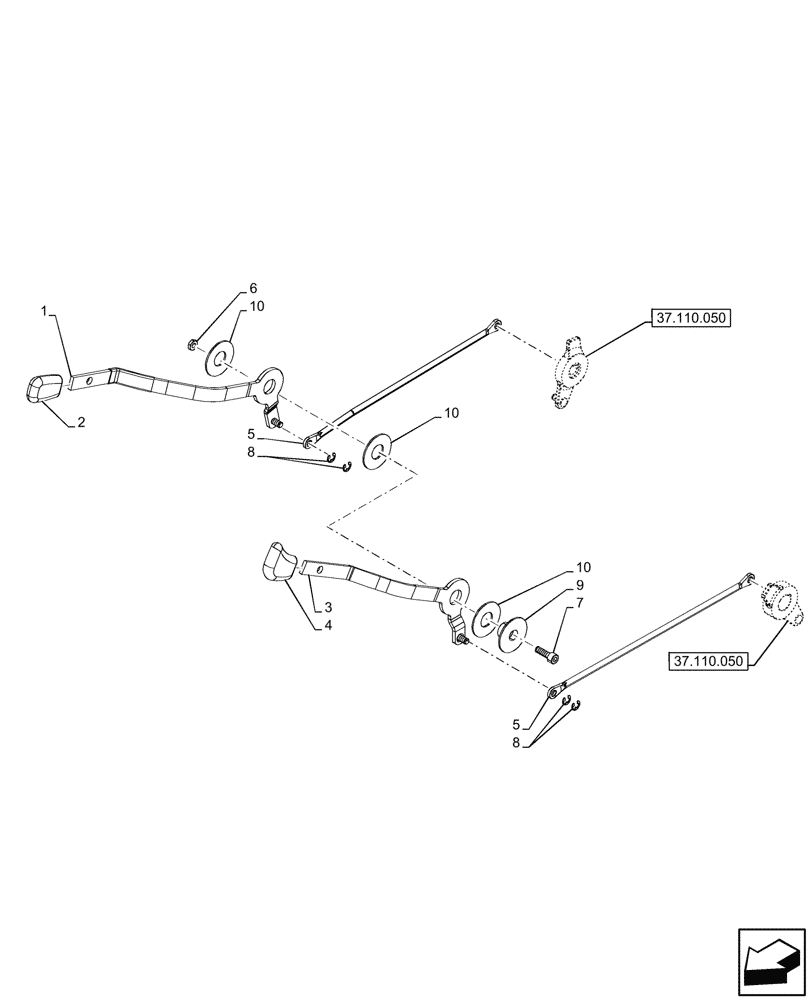

Схема запчастей Case IH FARMALL 80N - (37.108.040) - VAR - 744833 - REAR, HYDRAULIC LIFT, CONTROL LEVER, W/ LIFT-O-MATIC PLUS, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
37.110.050
10
7
1
3
5
8
10
5
10
8
4
2
9
6
37.110.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5188428

LEVER

Control Position

1шт.

2

5178867

KNOB

Black

1шт.

3

5188297

LEVER

Control Draught

1шт.

4

5189193

KNOB

Black

1шт.

5

5199211

CABLE,450mm L

2шт.

6

16102314

THIN NUT,M8 x 1.25, Cl 04

1шт.

7

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

8

11087974

CIRCLIP,Ext., M8, DAC

4шт.

9

5188307

HUB

1шт.

10

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.
