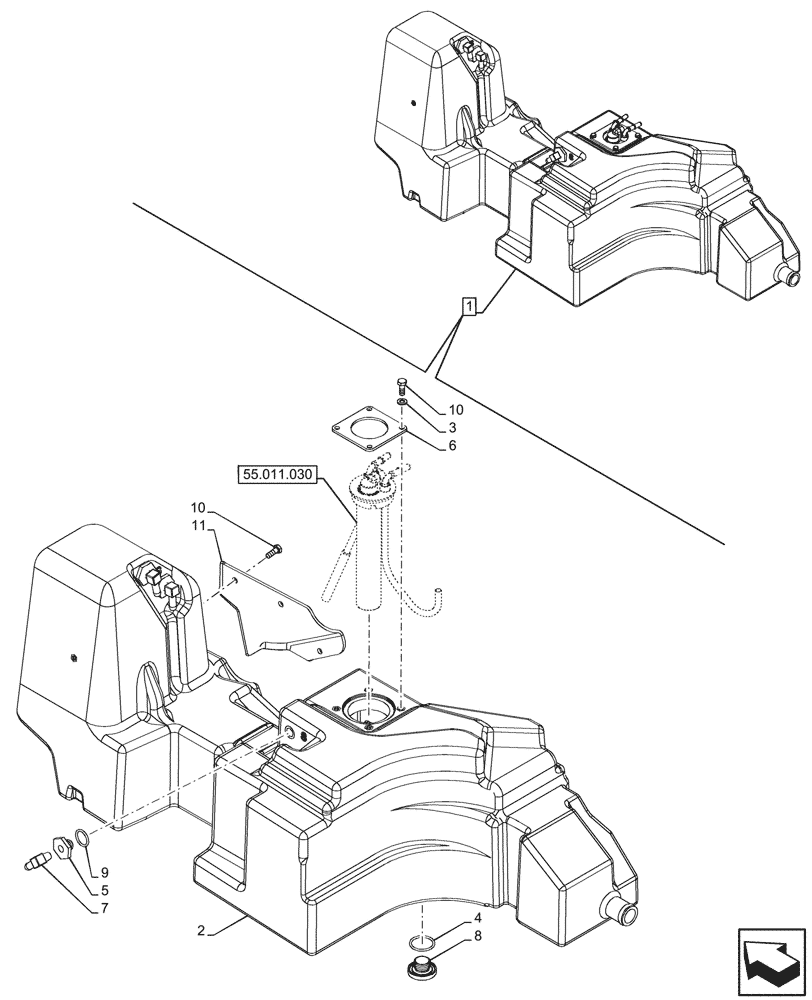

Запчасти Case IH FARMALL 80N (10.216.070) - VAR - 759004 - EXTRA FUEL TANK (10) - ENGINE

1

47443559

FUEL TANK

ASSY, Incl 2 - 11

1шт.

See also Extra Fuel Tank Components in Figure 55.011.030

1шт.

2

NSS

NOT SOLD SEPARAT

Fuel Tank, Incl in 1

1шт.

3

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

7шт.

4

14463889

O-RING,34.52mm ID x 3.53" Width

1шт.

5

5186758

REDUCER,3/8"

3шт.

6

87341216

PLATE

1шт.

7

5179322

90 ELBOW

3шт.

8

82019464

PLUG,3/4" GAS x 13.5mm L

1шт.

9

14463189

O-RING,Cl II-213, 70 Duro, .921" ID x .139" Thk

3шт.

10

10902334

BOLT,Hex, M6 x 18mm, Cl 10.9, Full Thd

7шт.

11

47595861

SHIELD

1шт.
