Запчасти Case IH FARMALL 80N (90.120.040) - VAR - 333155 - SEAT, MECHANICAL, SUSPENSION, COMPONENTS, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

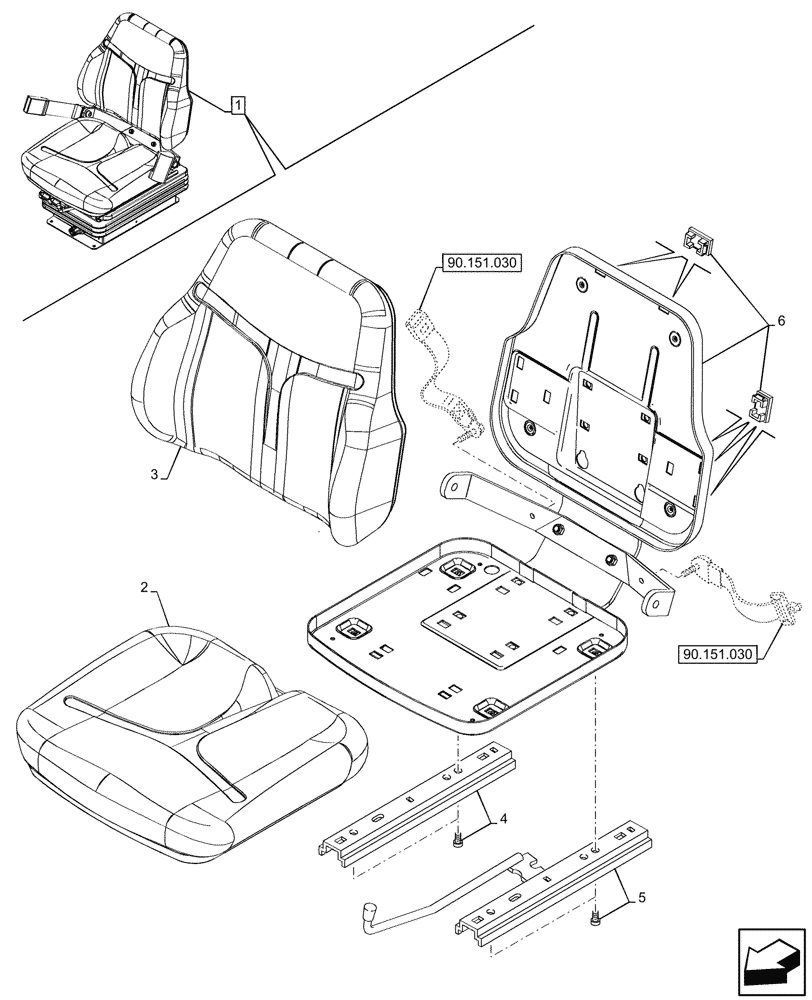

Схема запчастей Case IH FARMALL 80N - (90.120.040) - VAR - 333155 - SEAT, MECHANICAL, SUSPENSION, COMPONENTS, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.030
5
1
4
6
2
3
90.151.030

Артикул

Название

Примечание

Количество

1

47368403

DRIVER SEAT

PVC Wheat, ASSY, Incl 2 - 6

1шт.

See also Seat Components in Figure 90.151.030

1шт.

2

87753618

SEAT CUSHION

1шт.

3

87753631

BACKREST

1шт.

4

47136924

GUIDE

1шт.

5

47130725

GUIDE

1шт.

6

87752799

DRIVER SEAT

1шт.

Выбрано товаров: 7
