Запчасти Case IH FARMALL 80N (90.118.030) - LH MIRROR, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

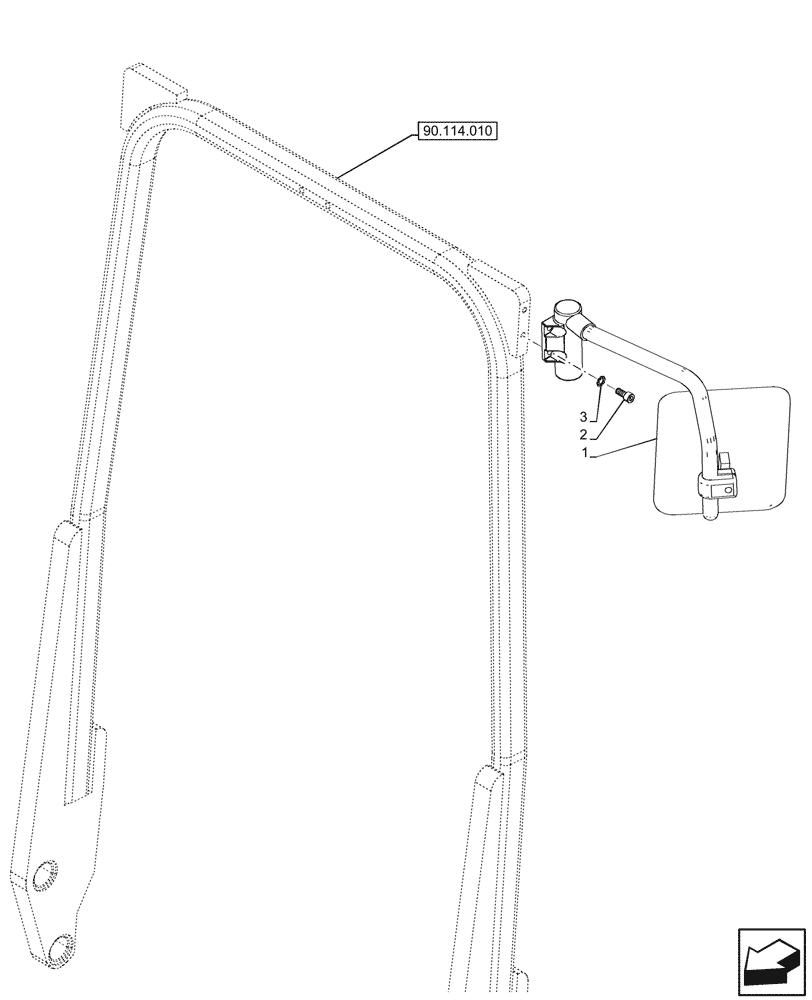

Схема запчастей Case IH FARMALL 80N - (90.118.030) - LH MIRROR, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.010
3
1
2

Артикул

Название

Примечание

Количество

1

5194636

REAR VIEW MIRROR

1шт.

2

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

3

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

2шт.

Выбрано товаров: 3
