Запчасти Case IH FARMALL 80N (90.116.240) - VAR - 743509, 330273 - REAR FENDER, GUARD, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

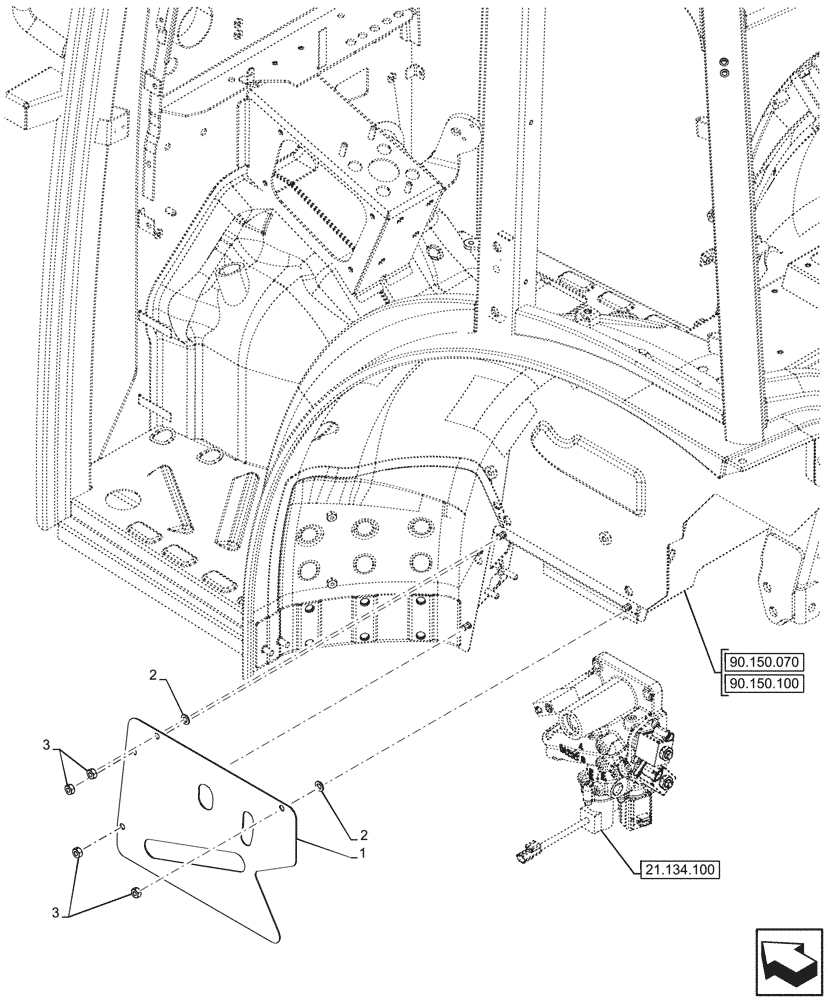

Схема запчастей Case IH FARMALL 80N - (90.116.240) - VAR - 743509, 330273 - REAR FENDER, GUARD, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
21.134.100
2
1
2
3
3
90.150.100
90.150.070

Артикул

Название

Примечание

Количество

1

47856965

PLATE

Cab, Cover

1шт.

2

12638521

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.

3

16100824

NUT,M8, Cl 10

4шт.

Выбрано товаров: 3
