Запчасти Case IH FARMALL 80N (90.116.220) - VAR - 342270, 342271, 759028, 759029 - PLATFORM, GUARD, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

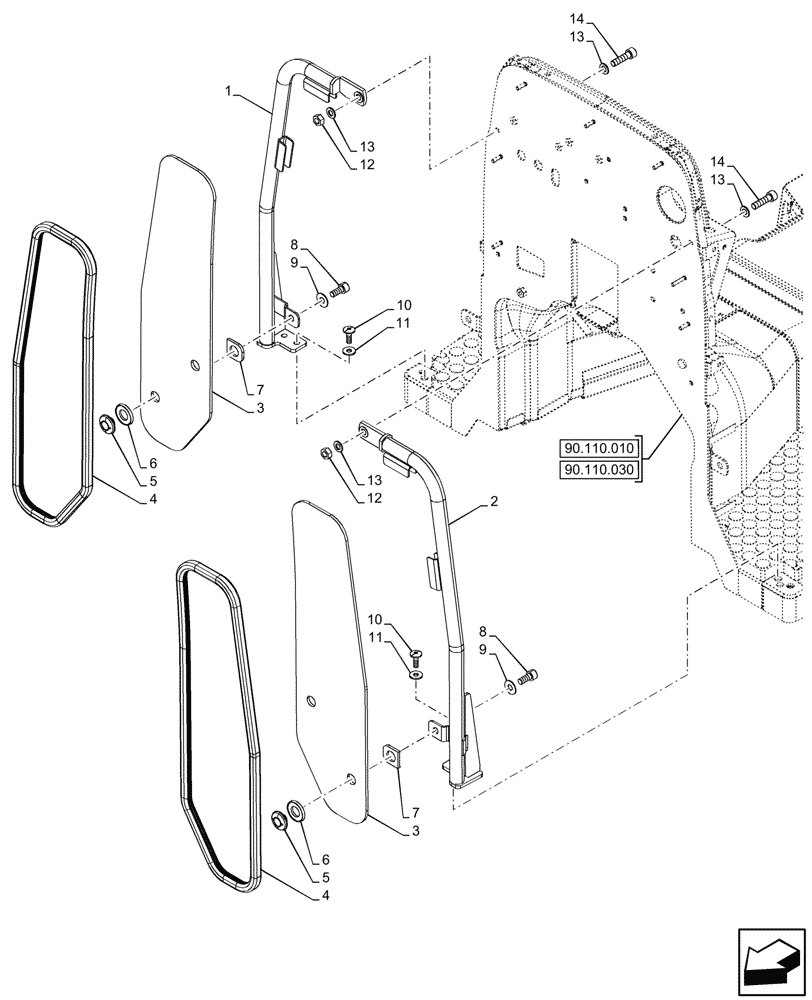

Схема запчастей Case IH FARMALL 80N - (90.116.220) - VAR - 342270, 342271, 759028, 759029 - PLATFORM, GUARD, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.030
13
4
5
12
3
10
7
12
8
13
10
14
3
1
5
13
11
7
4
2
13
6
14
6
8
9
11
9
90.110.010

Артикул

Название

Примечание

Количество

1

47892470

GRIP

RH, Black

1шт.

2

47892465

GRIP

LH, Black

1шт.

3

47126813

MIRROR, ATTACHMENT

2шт.

4

47126860

GASKET

2шт.

5

5120540

KNOB

4шт.

6

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

4шт.

7

5113395

SEAL, GLASS,Window, 30mm L

4шт.

8

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

9

12625224

LOCK WASHER,8.15mm ID x 20mm OD x 1mm Thk

4шт.

10

14780511

SCREW,Cross Rec Cheese Hd, M8 x 25mm, Cl 5.8

4шт.

11

11198179

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

4шт.

12

9706690

NUT,M8 x 1.25, Cl 8

2шт.

13

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

14

14306531

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 14
