(90.116.170) - VAR - 744478 - REAR FENDER EXTENSION, WRAP AROUND TYPE, W/O CAB

Запчасти Case IH FARMALL 80N (90.116.170) - VAR - 744478 - REAR FENDER EXTENSION, WRAP AROUND TYPE, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

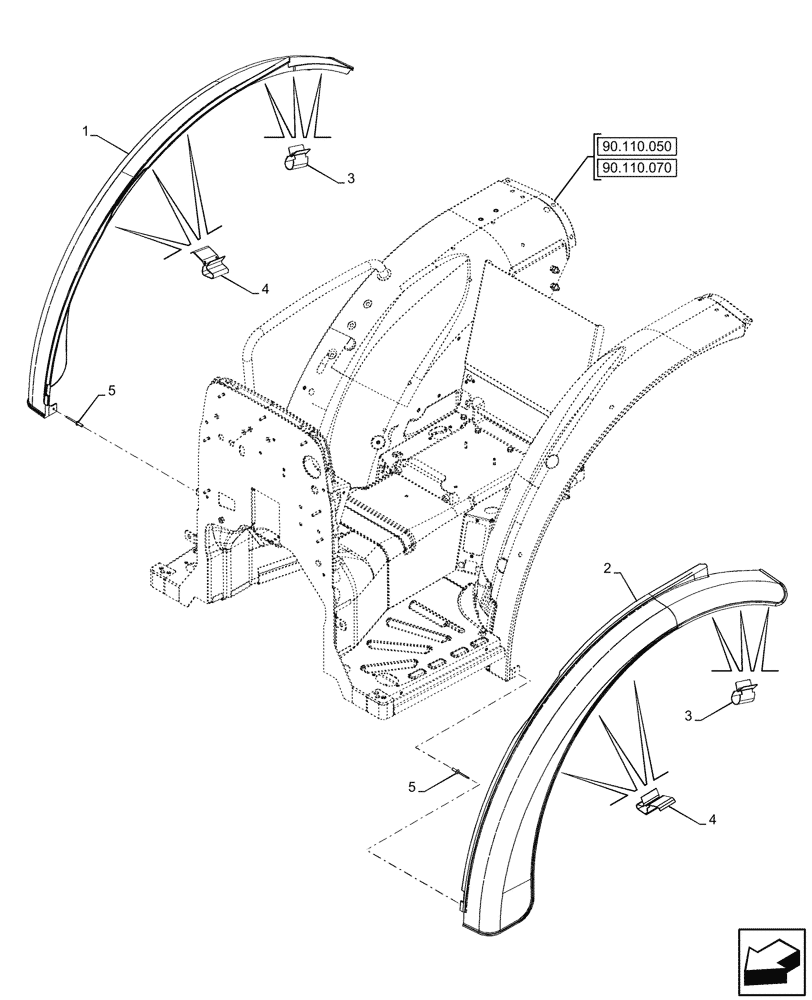

Схема запчастей Case IH FARMALL 80N - (90.116.170) - VAR - 744478 - REAR FENDER EXTENSION, WRAP AROUND TYPE, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.070
4
5
3
5
2
4
3
1
90.110.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5190885

FENDER EXTENSION

RH

1шт.

2

5190886

FENDER EXTENSION

LH

1шт.

3

82010838

SPRING CLIP,0.5mm Thk

6шт.

4

87636427

SPRING

14шт.

5

5186642

RIVET,Pop, 4.85mm OD x 14.5mm L

2шт.

Выбрано товаров: 5
