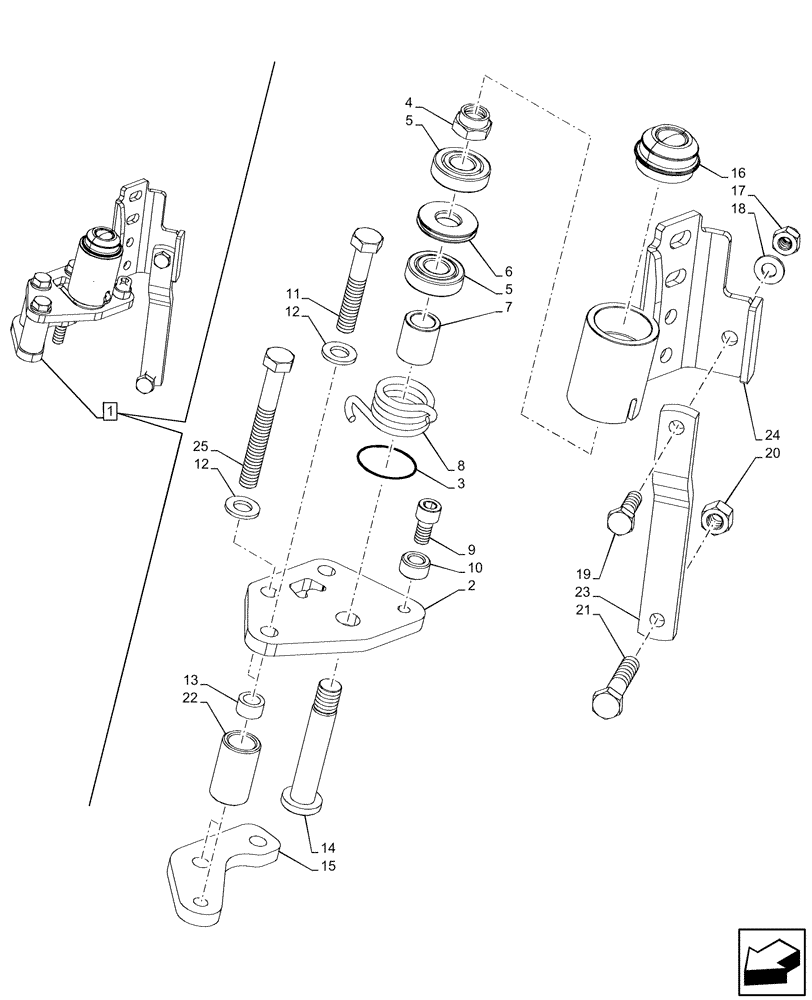

Запчасти Case IH FARMALL 80N (90.116.050) - VAR - 744477 - DYNAMIC FRONT FENDER, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84318149

SUPPORT

ASSY, RH, Incl 2 - 25

1шт.

1

84317593

SUPPORT

ASSY, LH, Incl 2 - 25

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

3

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

4

12575911

NUT,M16 x 1.5, Cl 8

1шт.

5

26799910

ROLLER BEARING,17mm ID x 40mm OD x 13.25mm W

2шт.

6

84317661

SPACER

1шт.

7

84317612

SPACER

1шт.

8

84318176

SPRING

RH

1шт.

8

84317664

SPRING

LH

1шт.

9

14420024

SCREW,M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

10

84318119

SPACER

1шт.

11

15216021

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8, Full Thd

1шт.

12

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.

13

84317762

RUBBER RING

3шт.

14

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

15

84317770

RETAINING PLATE

1шт.

16

84317743

COVER

1шт.

17

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

18

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

19

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

20

10719311

NUT,M12 x 1.75, Cl 8

1шт.

21

15215821

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8, Full Thd

1шт.

22

84362798

SPACER

3шт.

23

84362799

BRACKET

1шт.

24

84362793

HUB CARRIER

RH

1шт.

24

84362942

HUB CARRIER

LH

1шт.

25

15216334

SCREW,Hex, M12 x 85mm, Cl 10.9

2шт.
