(90.116.040) - VAR - 744477 - DYNAMIC FRONT FENDER (240MM)

Запчасти Case IH FARMALL 80N (90.116.040) - VAR - 744477 - DYNAMIC FRONT FENDER (240MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS

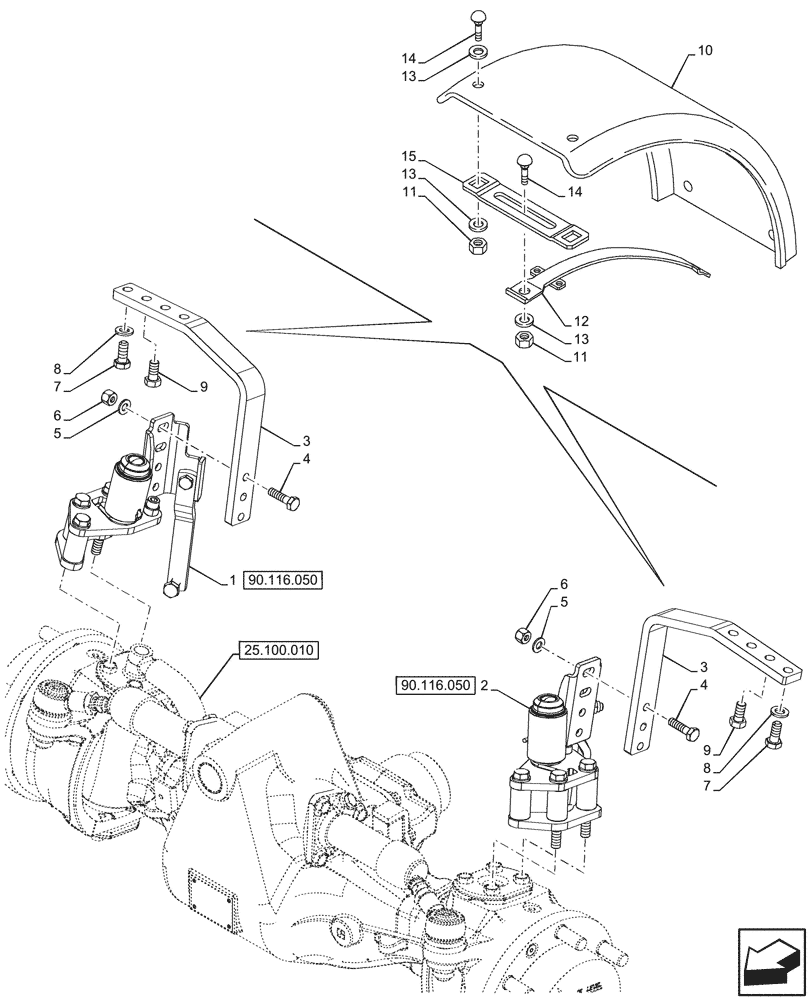

Схема запчастей Case IH FARMALL 80N - (90.116.040) - VAR - 744477 - DYNAMIC FRONT FENDER (240MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.050
11
8
5
6
1
9
5
13
10
7
3
4
14
11
4
2
14
15
13
7
9
12
3
8
6
13
25.100.010
90.116.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84318149

SUPPORT

RH, ASSY

1шт.

2

84317593

SUPPORT

LH, ASSY

1шт.

3

84327318

SUPPORT

2шт.

4

11307024

BOLT,Hex, M10 x 1.25 x 40, 8.8, Full Thd

4шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

6

12574514

LOCK NUT,M10 x 1.25

4шт.

7

15542724

SCREW,Hex, M12 x 1.25 x 28mm

4шт.

8

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

9

14274431

BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9

4шт.

10

5125270

COVER ASSY

240mm, with 4WD - 27/10-15.3 or 200/70R16 or 240/70R16 or 260/70R16 or 7.50R16 or 7.50R18

2шт.

11

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

12шт.

12

84327279

SUPPORT

2шт.

13

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

12шт.

14

82021059

BOLT,Hex, M10 x 1.25 x 31mm

12шт.

15

47137894

PLATE

4шт.
