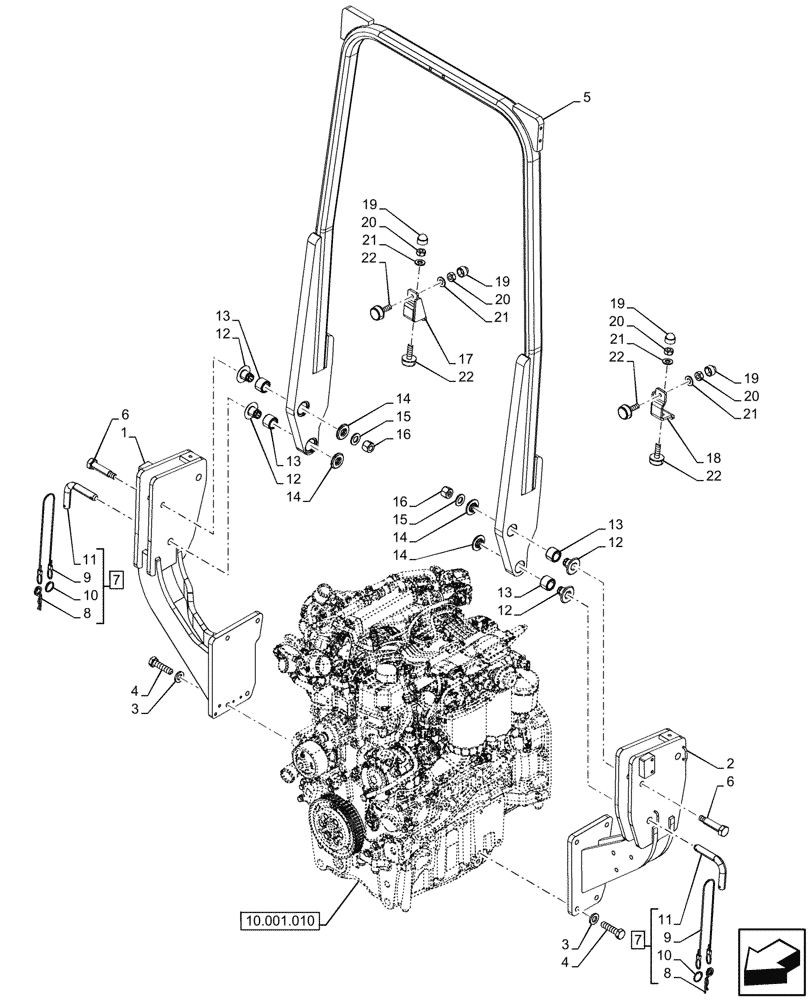

Запчасти Case IH FARMALL 80N (90.114.010) - VAR - 342270, 342271, 759028, 759029 - ROPS, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47889765

SUPPORT

RH, Dark Gray

1шт.

2

47936938

SUPPORT

LH, Dark Gray

1шт.

3

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

8шт.

4

15215731

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9, Full Thd

8шт.

5

47877120

ROPS

Black

1шт.

6

47915961

SCREW

2шт.

7

87382359

PIN,18mm OD x 210mm L

2шт.

8

44901190

COTTER PIN,6.3mm x 77.6mm L

ASSY, Incl 8 (Qty 1), 9 (Qty 1), 10 (Qty 1), 11 (Qty 1)

2шт.

9

NSS

NOT SOLD SEPARAT

Cable Steel, Incl in 7

2шт.

10

44901192

SNAP RING,25mm ID

2шт.

11

47125411

PIN,18mm OD x 116mm L

2шт.

12

87346594

BUSHING,18.3mm ID x 50mm OD x 31.7mm L

4шт.

13

87346595

BUSHING,24.8mm ID x 34.5mm OD x 26mm L

4шт.

14

87382766

BUSHING,20.60mm ID x 45mm OD x 11.50mm, Plastic

4шт.

15

14496804

WASHER,15mm ID x 28mm OD x 2.5mm Thk

2шт.

16

12574821

LOCK NUT,M14 x 1.5, Cl 10

2шт.

17

84136617

BRACKET

1шт.

18

84136615

BRACKET

1шт.

19

5126232

COVER

4шт.

20

12164711

NUT,M10 x 1.25, Cl 8

4шт.

21

14496604

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

22

87382319

PAD

4шт.
