Запчасти Case IH FARMALL 80N (90.110.260) - VAR - 341794, 759022, 759023, 759024 - REMOTE CONTROL VALVES, LEVER, TRIM, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

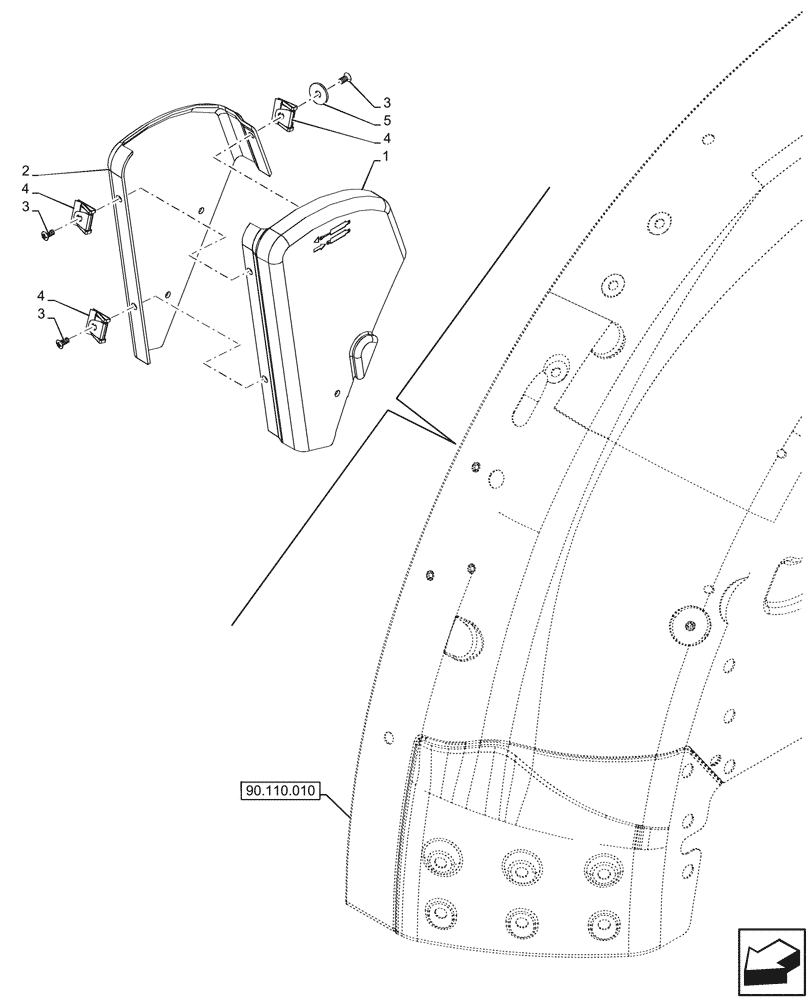

Схема запчастей Case IH FARMALL 80N - (90.110.260) - VAR - 341794, 759022, 759023, 759024 - REMOTE CONTROL VALVES, LEVER, TRIM, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.010
3
3
4
1
3
4
5
4
2

Артикул

Название

Примечание

Количество

1

84490756

TRIM PANEL

LH

1шт.

2

84490755

COVER

RH

1шт.

3

13310777

SCREW,Pozidriv Oval Hd, Csk, M5 x 10mm, Full Thd, SST

3шт.

4

5174673

FASTENER,12mm OD

3шт.

5

47397098

WASHER,22mm ID x 6.5mm OD x 2mm Thk

1шт.

Выбрано товаров: 5
