Запчасти Case IH FARMALL 80N (90.110.190) - VAR - 759028, 759029, 759031, 759033 - TRIM PANEL, STEERING COLUMN, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

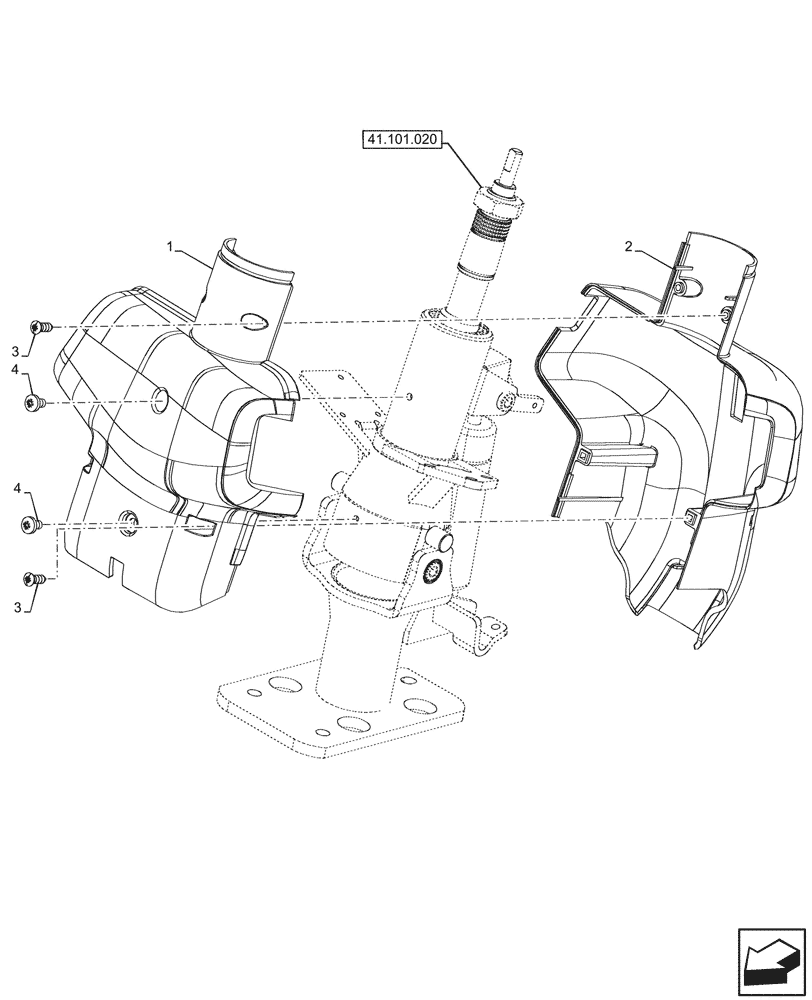

Схема запчастей Case IH FARMALL 80N - (90.110.190) - VAR - 759028, 759029, 759031, 759033 - TRIM PANEL, STEERING COLUMN, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
41.101.020
4
3
3
1
4
2

Артикул

Название

Примечание

Количество

1

87399476

COVER

Upper

1шт.

2

87399477

COVER

Lower

1шт.

3

12674404

SELF-TAP SCREW,Csk Hd, M5 x 16mm

4шт.

4

13273824

SCREW,Pozidriv Pan Hd, M5 x 8mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 4
