Запчасти Case IH FARMALL 80N (90.110.130) - VAR - 759012 - PLATFORM, SUPPORT, W/O EDC, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

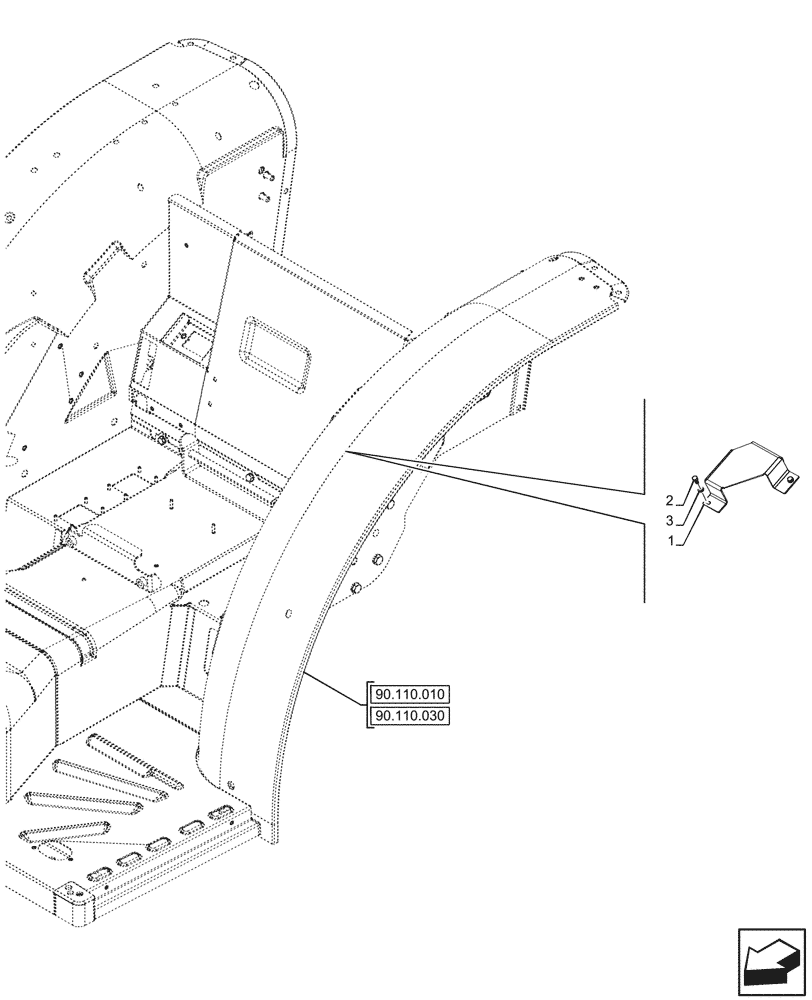

Схема запчастей Case IH FARMALL 80N - (90.110.130) - VAR - 759012 - PLATFORM, SUPPORT, W/O EDC, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.110.030
3
2
1
90.110.010

Артикул

Название

Примечание

Количество

1

47670542

SUPPORT

1шт.

2

10977621

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

2шт.

3

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

Выбрано товаров: 3
