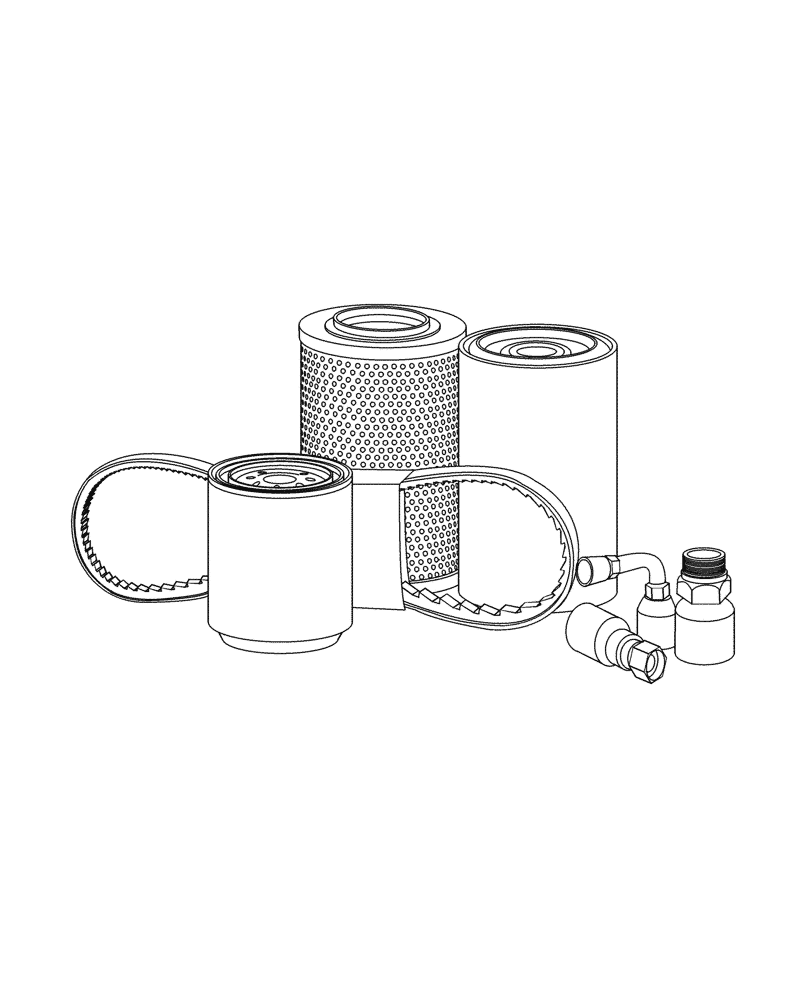

Запчасти Case IH FARMALL 80N (05.100.02) - INITIAL STOCKING LIST (LIST B) W/ DPF (05) - SERVICE & MAINTENANCE

1

47383500

ALTERNATOR,14V, 120A, W/Pulley

1шт.

2

5801450757

CYLINDER HEAD GASKET,0.80mm Thk

1шт.

3

5801446795

GASKET

Cylinder Head Cover

1шт.

4

504379050

GASKET

Front Cover

1шт.

5

504164360

GASKET

Oil Sump

1шт.

6

504170332

MANIFOLD GASKET

Exhaust

1шт.

7

504380898

MANIFOLD GASKET

Inlet

1шт.

8

504235816

GASKET

Engine Oil Filter

1шт.

9

504381582

GASKET

Heat Exchanger

1шт.

10

73328435

WET BATTERY,LH4 CNH, 12V, 850CCA

1шт.

11

87354670

MASTER CYLINDER

Brakes

2шт.

12

10861290

BULB,12V, 35W

Rear Worklight, W/O CAB

1шт.

13

82003147

BULB,Festoon C11, 12V, 10W

A.T.I., Rear Tail Lamp

1шт.

14

5080613

BULB,P21W, 12V, 21W

Direction, Rear Tail Lamp

1шт.

15

86616248

BULB,H1, 12V, 55W

Rotary Beacon

1шт.

16

87283179

BULB,H4, 12V, 60/55W

Front Headlight

1шт.

Valid for Quantum 80N, 80V, 90N, 90V, 100N, 100V, 110N & 110V Models only

1шт.

17

87610994

CAP,103mm OD x 69.7mm Thk

Fuel Tank

1шт.

18

84157159

FUSE,40A, Maxi, Orange

1шт.

19

82012388

FUSE,30A, Maxival, Green

1шт.

20

84127702

FUSE,10A, Mini, Red

1шт.

21

84127703

FUSE,15A, Mini, Blue

1шт.

22

84127704

FUSE,20A, Mini, Yellow

1шт.

23

84127705

FUSE,25A, Mini, White

1шт.

24

84152583

FUSE,7.5A, Mini, Brown

1шт.

25

84153830

FUSE,5A, Mini, Beige

1шт.

26

84157159

FUSE,40A, Maxi, Orange

1шт.

27

84543528

RELAY,12V, 20A, Micro

1шт.

28

87392809

RELAY,High Current, 12V, 190A

1шт.

29

84543528

RELAY,12V, 20A, Micro

1шт.

30

47705126

SEAL KIT

Trailer Brake Valve

1шт.

31

47705021

SEAL KIT

Trailer Brake Valve, W/ EDC & Superflow

1шт.

32

5194205

SEAL KIT

Steering Cylinder, 4WD

1шт.

33

5178101

KIT

Hydrauli Oil Filter

1шт.

34

47464542

KIT

Mid-Mount Valves, W/ CAB

1шт.

35

47464546

KIT

Mid-Mount Valves

1шт.

36

47464543

KIT

Mid-Mount Valves, W/ CAB

1шт.

37

84410459

SEAL KIT

Hydraulic Top Link, Rear

1шт.

38

5190474

KIT

Hydraulic Lift Rod, RH, Rear

1шт.

39

87312540

KIT

Hydraulic Stabilizer, Rear Frame

1шт.

40

5801477100

SENSOR

Temperature, Fuel Filter

1шт.

41

5801474160

SENSOR

Injection Manifold

1шт.

42

500382599

SENSOR,Temperature

2шт.

43

5801506502

SENSOR

Water Separator

1шт.

44

504084983

PRESSURE SWITCH

Engine Oil Filter

1шт.

45

504369148

SENSOR

Air Intake

1шт.

46

504381064

SENSOR

Temperature, Exhaust Manifold

1шт.

47

5801382522

SENSOR

Pressure, Exhaust Manifold

1шт.

48

504048261

SENSOR

Camshaft Position

1шт.

49

4897242

SENSOR

Crankshaft Position

1шт.

50

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rear Hitch, Rotary Position

1шт.

51

82028133

SENSOR,3/8"-18

Transmission Temperature

1шт.

52

47767014

SENSOR

Speed, Rear PTO

2шт.

53

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

HI-LO, Range

1шт.

54

5173566

SENSOR

LVTD Draft, W/ CAB

1шт.

55

84578828

SENSOR

Steering

1шт.

56

47470970

SENDER UNIT

Fuel Gauge, Main Tank

1шт.

57

87755846

POTENTIOMETER,5V, 30mA, 150mW

EHR Flow Control Knob, W/ CAB

1шт.

58

47478894

TEMPERATURE SENDER,50mm L

Exhaust System

1шт.

59

47478866

TEMPERATURE SENDER,35mm L

Exhaust System

1шт.

60

84565657

SENSOR

Air Cleaner

1шт.

61

84286249

SENSOR

DPF Delta Pressure

1шт.

62

84286040

SENSOR

Lambda Uhego

1шт.

63

84539252

SENSOR

Temperature, Air Intake

1шт.

64

47616200

SENDER UNIT

Fuel Gauge, Supplementary Tank

1шт.

65

84208918

STARTER MOTOR,12V, 3.2kW

1шт.

66

87312356

IGNITION KEY

Case IH

2шт.

67

504231722

DIPSTICK

Engine Oil

1шт.

68

5801964574

THERMOSTAT

Engine

1шт.

69

87534849

KIT

Transmission Clutch Discs, HI-LO

2шт.

70

5168219

BRAKE DISC,30mm ID x 35mm OD x 4mm Thk

Parking Brake

5шт.

71

5194304

DISC

Front Brake

4шт.

72

5194306

DISC

Front Brake

2шт.

73

5194310

DISC

Front Brake

2шт.

74

84146735

CLUTCH PLATE,280mm OD

Main Clutch

1шт.

Valid for Quantum 110N, 110V & Farmall 110N, 110V Models only

1шт.

75

84424851

CLUTCH PLATE,280mm OD x 35mm Thk, 14T

Main Clutch

1шт.

Valid for Quantum 110N, 110V & Farmall 110N, 110V Models only

1шт.

76

84211048

WIPER MOTOR,12V, 2 SPD

Front, W/ CAB

1шт.

77

87319979

WIPER ARM,Single, 385mm L

Front, W/ CAB

1шт.

78

87319975

WIPER BLADE,400mm L

Front, W/ CAB

1шт.

79

84173767

WIPER MOTOR,12V, 2 SPD

Rear, W/ CAB

1шт.

80

87319976

WIPER BLADE,450mm L

Rear, W/ CAB

1шт.

81

87319978

WIPER ARM,Single, 350mm L

Rear, W/ CAB

1шт.
