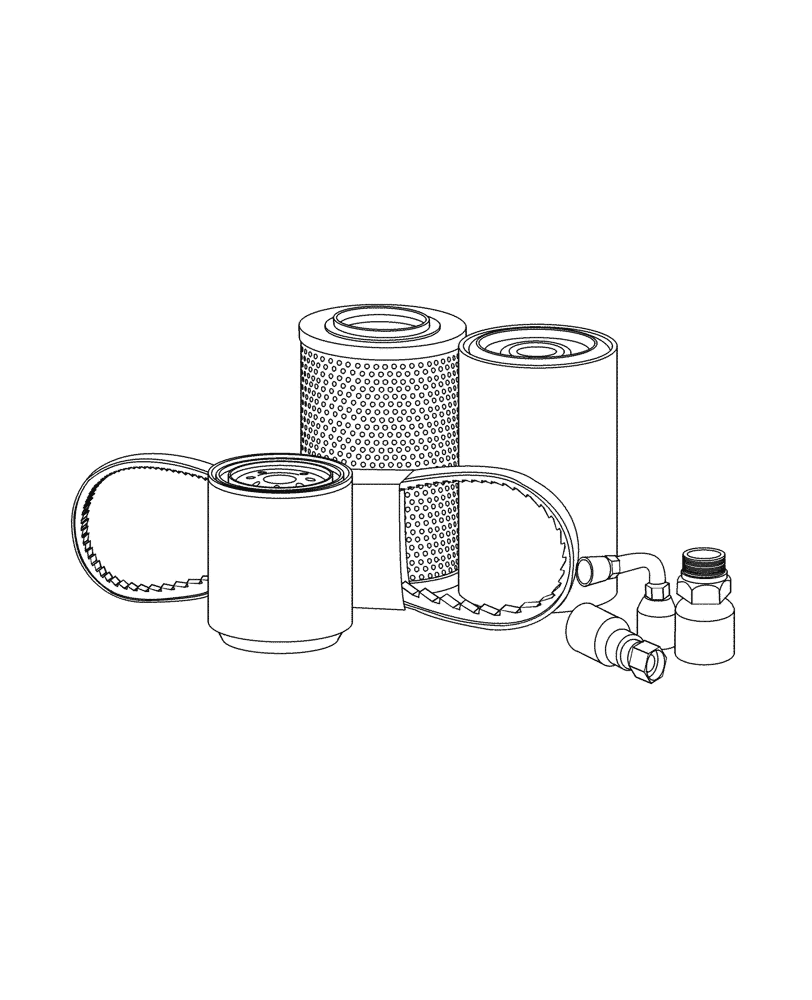

Запчасти Case IH FARMALL 80N (05.100.02) - INITIAL STOCKING LIST (LIST B) W/ DOC (05) - SERVICE & MAINTENANCE

1

47383500

ALTERNATOR,14V, 120A, W/Pulley

1шт.

2

73328435

WET BATTERY,LH4 CNH, 12V, 850CCA

1шт.

3

87354670

MASTER CYLINDER

Brakes

1шт.

4

10861290

BULB,12V, 35W

Rear Worklight, W/O CAB

1шт.

Valid for Rop Models only

1шт.

5

14151590

BULB,H3, 12V, 55W

1шт.

Valid for Cab Models only

1шт.

6

5080613

BULB,P21W, 12V, 21W

Direction, Rear Tail Lamp

1шт.

7

710196R1

BULB,C5W, 12V, 5W

Rear Light

1шт.

8

86616248

BULB,H1, 12V, 55W

Rotary Beacon

1шт.

9

87283179

BULB,H4, 12V, 60/55W

1шт.

10

47132126

DUST CAP,Green

3 Remote Control Valves

1шт.

11

47132127

DUST CAP,Blue

3 Remote Valves

2шт.

12

47132128

DUST CAP,Brown

3 Remote Valves

2шт.

13

82022744

CAP,Female, Vented, Non-Locking

Radiator Tank

1шт.

14

87610994

CAP,103mm OD x 69.7mm Thk

Fuel Tank

1шт.

15

47633262

FLASHER UNIT,12V, 21W

1шт.

16

84414345

FLASHER UNIT

1шт.

17

82012388

FUSE,30A, Maxival, Green

1шт.

18

84157159

FUSE,40A, Maxi, Orange

2шт.

19

84153830

FUSE,5A, Mini, Beige

1шт.

20

84152583

FUSE,7.5A, Mini, Brown

1шт.

21

84127702

FUSE,10A, Mini, Red

1шт.

22

84127703

FUSE,15A, Mini, Blue

1шт.

23

84127705

FUSE,25A, Mini, White

1шт.

24

84127708

FUSE,30A, Mini, Green

1шт.

25

87312356

IGNITION KEY

2шт.

26

87556869

IGNITION SWITCH

1шт.

27

84543528

RELAY,12V, 20A, Micro

5шт.

28

87392809

RELAY,High Current, 12V, 190A

1шт.

29

87604032

RELAY,12V, 30A, Micro

1шт.

30

47901260

RESISTOR

1шт.

Valid for Cab Models only

1шт.

31

47478866

TEMPERATURE SENDER,35mm L

on Muffler, Egt

1шт.

32

47478894

TEMPERATURE SENDER,50mm L

on Muffler, Egt

1шт.

33

47704739

SENSOR

Condenser Pressure

1шт.

Valid for Cab Models only

1шт.

34

47704741

SENSOR

Air Conditioner, Pressure

1шт.

Valid for Cab Models only

1шт.

35

47767014

SENSOR

Speed, Rear PTO

2шт.

36

47901263

SENSOR

Air Conditioner, Temperature

1шт.

Valid for Cab Models only

1шт.

37

47902919

SENSOR

Air Conditioner, Pressure Freon

1шт.

Valid for Cab Models only

1шт.

38

47917140

SENDER UNIT

Extra Fuel, Tank

1шт.

39

5173566

SENSOR

LVTD Draft

1шт.

Valid for Cab Models only

1шт.

40

5190018

PRESSURE SWITCH

2шт.

41

82028133

SENSOR,3/8"-18

Transmission Temperature

2шт.

42

84286040

SENSOR

Lambda Uhego

1шт.

43

84286249

SENSOR

DPF Delta Pressure

1шт.

44

84539252

SENSOR

Temperature, Air Intake

1шт.

45

84565657

SENSOR

Air Cleaner

1шт.

46

84578828

SENSOR

Steering

1шт.

47

87494633

PRESSURE SWITCH

Transmission, Control Valve

1шт.

48

87598056

SWITCH

Yellow

2шт.

49

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rear Hitch, Rotary Position

1шт.

50

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

HI-LO, Range

1шт.

51

47705021

SEAL KIT

Trailer Brake Valve, W/ EDC & Superflow

1шт.

52

47705126

SEAL KIT

Trailer Brake Valve

1шт.

Valid for Cab Models only

1шт.

53

5178101

KIT

Hydrauli Oil Filter

1шт.

Valid for Cab Models only

1шт.

54

5190474

KIT

Hydraulic Lift Rod, RH, Rear

1шт.

55

5194205

SEAL KIT

Steering Cylinder, 4WD

1шт.

56

5194880

O-RING KIT

O-Rings, Hydraulic Oil Filter, Transmission

1шт.

Valid for Cab Models only

1шт.

57

84410459

SEAL KIT

Hydraulic Top Link, Rear

1шт.

58

87312540

KIT

Hydraulic Stabilizer, Rear Frame

1шт.

59

84208918

STARTER MOTOR,12V, 3.2kW

on Engine

1шт.

60

5171657

DISC,100mm ID x 152.6mm OD x 10mm Thk

Transmission, Clutch

1шт.

61

5173294

CLUTCH DISC,99mm ID x 152.6mm OD x 2mm Thk

Transmission

1шт.

62

5173295

CLUTCH DISC,99mm ID x 152.6mm OD x 2.2mm Thk

Transmission

1шт.

63

5194306

DISC

Front Brake

2шт.

64

84146735

CLUTCH PLATE,280mm OD

Main Clutch

1шт.

Valid for 100N, 110N, 100V and 110V Models only

1шт.

65

84173767

WIPER MOTOR,12V, 2 SPD

Rear, W/ CAB

1шт.

Valid for Cab Models only

1шт.

66

84211048

WIPER MOTOR,12V, 2 SPD

Front, W/ CAB

1шт.

Valid for Cab Models only

1шт.

67

87319236

WIPER BLADE,455mm L

1шт.

Valid for Cab Models only

1шт.

68

87319975

WIPER BLADE,400mm L

Front, W/ CAB

1шт.

Valid for Cab Models only

1шт.

69

87319978

WIPER ARM,Single, 350mm L

Rear, W/ CAB

1шт.

Valid for Cab Models only

1шт.

70

87319979

WIPER ARM,Single, 385mm L

Front, W/ CAB

1шт.

Valid for Cab Models only

1шт.

71

504231722

DIPSTICK

on Engine

1шт.
