Запчасти Case IH FARMALL 80N (90.100.020) - VAR - 759028, 759029, 759031, 759033 - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

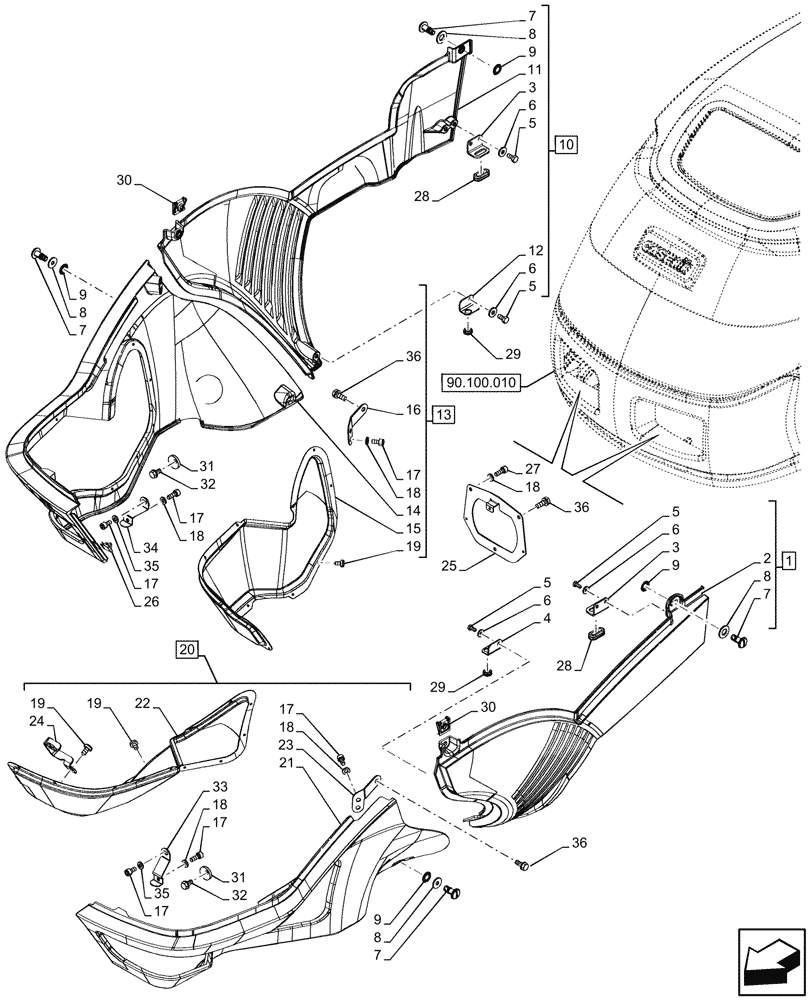

Схема запчастей Case IH FARMALL 80N - (90.100.020) - VAR - 759028, 759029, 759031, 759033 - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.100.010
36
34
20
19
6
18
30
8
36
21
23
27
13
33
19
5
11
31
30
18
8
7
7
10
22
1
17
9
6
9
7
29
25
7
28
35
18
32
31
28
9
17
18
3
5
6
19
2
15
18
17
8
5
17
17
16
5
4
36
32
8
9
29
17
24
35
14
26
12
6
3

Артикул

Название

Примечание

Количество

1

47813171

PANEL

ASSY, LH Side Rear, Incl 2, 3 (Qty 1), 4, 5 (Qty 3), 6 (Qty 3), 7 (Qty 2), 8 (Qty 2), 9 (Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

LH Side Rear Panel, Incl in 1

1шт.

3

47676802

BRACKET

PTD, Hood

2шт.

4

47676814

BRACKET

PTD, Side Panel

1шт.

5

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

6шт.

6

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6шт.

7

87585593

FASTENER,9mm ID x 18mm OD

6шт.

8

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

9

87313183

RETAINER

6шт.

10

47813213

PANEL

ASSY, RH Side Panel, Incl 3 (Qty 1), 5 (Qty 3), 6 (Qty 3), 7 (Qty 2), 8 (Qty 2), 9 (Qty 2), 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

RH Side Panel, Incl in 10

1шт.

12

47918080

BRACKET

Side Panel

1шт.

13

47893306

PANEL

ASSY, RH Frontal, Incl 7 (Qty 1), 8 (Qty 1), 9 (Qty 1), 14 - 16, 17 (Qty 2), 18 (Qty 2), 19 (Qty 13)

1шт.

14

NSS

NOT SOLD SEPARAT

RH Frontal panel, Incl in 13

1шт.

15

47813306

GRILLE

RH Frontal

1шт.

16

47911203

BRACKET

PTD, RH Frontal Panel

1шт.

17

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

18

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

8шт.

19

47917516

SCREW

M4 x 8mm

28шт.

20

47893311

PANEL

ASSY, LH Frontal, Incl 7 (Qty 1), 8 (Qty 1), 9 (Qty 1), 17 (Qty 2), 18 (Qty 2), 19 (Qty 15), 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

Panel LH Frontal, Incl in 20

1шт.

22

47813312

GRILLE

LH Frontal

1шт.

23

47911174

BRACKET

PTD, LH Frontal Side Panel

1шт.

24

47698421

BRACKET

PTD, LH Frontal Side Panel

1шт.

25

47750945

PLATE

PTD, Lamp, NDG

2шт.

26

47740221

SPRING CLIP,13.9mm L x 12.7mm W x 8.9mm H

1шт.

27

87343625

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

2шт.

28

47679203

GROMMET,27.8mm ID x 39mm OD x 10.7mm L

27.8mm ID x 39mm OD x 39mm L

2шт.

29

47679231

GROMMET,10mm ID x 18mm OD x 7.5mm L

10mm ID x 18mm OD

2шт.

30

87313182

CLIP

6шт.

31

47998268

WASHER,7mm ID x 25mm OD x 4mm Thk

2шт.

32

86511893

BOLT,Hex Serr, M6 x 12mm

2шт.

33

48006556

BRACKET

PTD, LH, Frontal Panel

1шт.

34

48006558

BRACKET

PTD, RH, Frontal Panel

1шт.

35

12643704

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

36

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

6шт.

Выбрано товаров: 36
