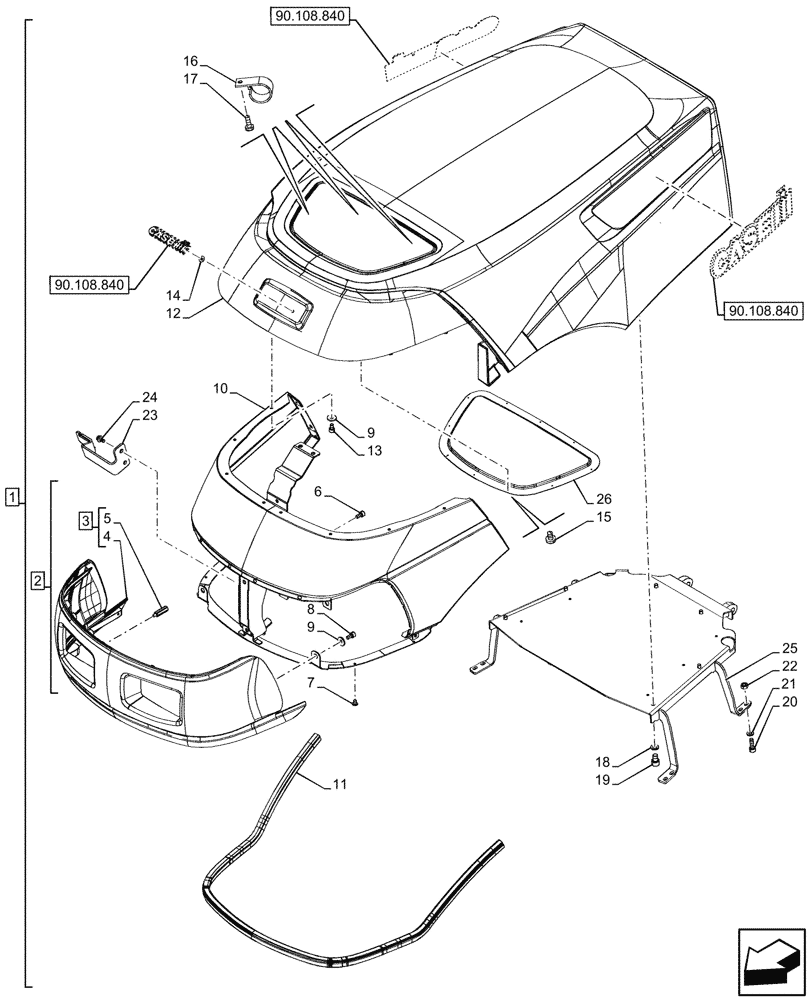

Запчасти Case IH FARMALL 80N (90.100.010) - VAR - 759028, 759029, 759031, 759033 - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47896339

ENGINE HOOD

ASSY, CASE, Incl 2 - 22, 25, 26

1шт.

See also Hood Components in Figure 90.108.840

1шт.

2

47908275

HOOD

ASSY, Frontal Grille, Incl 2 - 8, 9 (Qty 8), 10

1шт.

3

47813439

BEZEL

ASSY, CASE, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Bezel, Incl in 3

1шт.

5

47750950

SPACER,6mm ID x 13 mm OD x 47mm L

M10 x 37mm

4шт.

6

87343625

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

2шт.

7

16084201

SCREW,Pan Hd, M5 x 3 x 12mm

6шт.

8

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

6шт.

9

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

11шт.

10

NSS

NOT SOLD SEPARAT

Grille, Incl in 2

1шт.

11

47698459

SEAL,19.5mm H x 1231mm L

19.5mm H x 1231mm L

1шт.

12

NSS

NOT SOLD SEPARAT

Hood, Incl in 1

1шт.

13

14305024

HEX SOC SCREW,M6 x 10mm, Cl 8.8, Full Thd

11шт.

14

14227874

SPRING NUT,M4

2шт.

15

47917516

SCREW

M4 x 8mm

12шт.

16

47910952

CLIP,22mm ID x 36.5mm L x 12.7mm W

12шт.

17

47917517

SCREW

M4 x 13mm

14шт.

18

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

6шт.

19

2168745

SCREW,Hex, M8 x 12mm, Cl 8.8

Hex, M8 x 12mm, Cl 8.8, ZND

6шт.

20

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

8шт.

21

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

8шт.

22

10720111

NUT,M6, Cl 8

8шт.

23

47943520

BRACKET

1шт.

24

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

25

48022570

BRACKET

1шт.

26

47813116

GRILLE

1шт.
